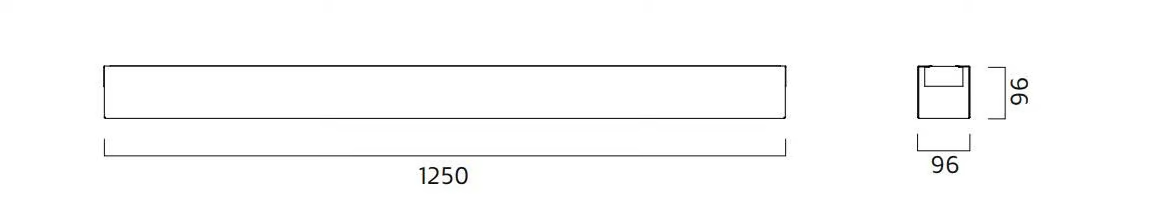

Overall dimensions
Information

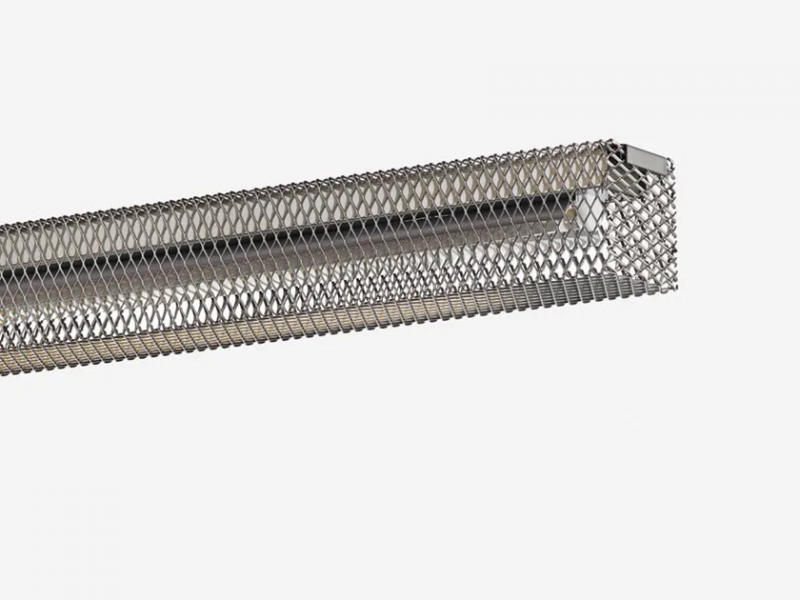

Perforated metal with square holes or expanded metal. Yellow Ral 1018, orange Ral 2004, clear painted metal or transparent gold varnish. Grid has a raw finish and one can see weldings through the transparent varnish. Reflector available as accessory. Other colours on request.
LED info: System power: 19W or 33W. Luminaire Luminous Flux: 1414LM or 2210LM.
CCT 3000K. SDCM 3. CRI 80.
Installation: Ceiling.
Connection: Terminal block 5x4mm2.
The Grid series is decorated with industry standard sheet metal with different hole formations. Three patterns, two different perforations in the standard colours clear lacquered metal and transparent gold.
