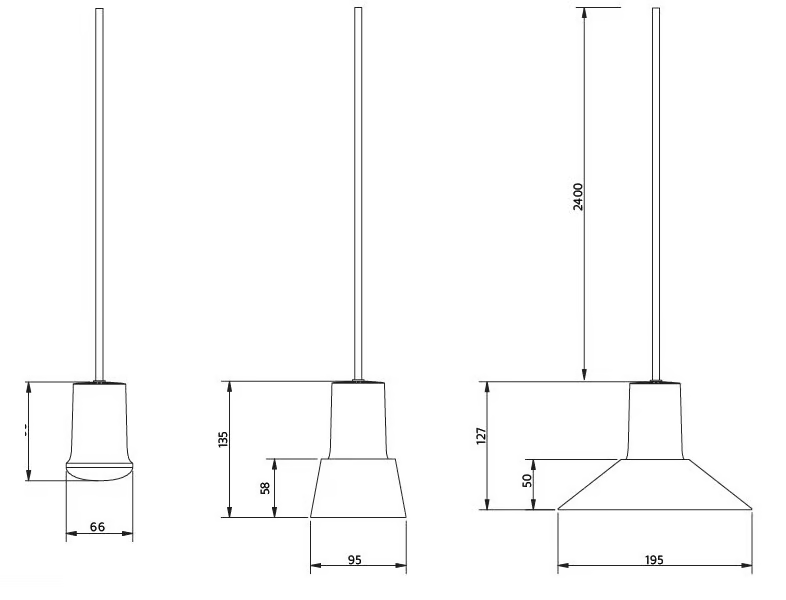

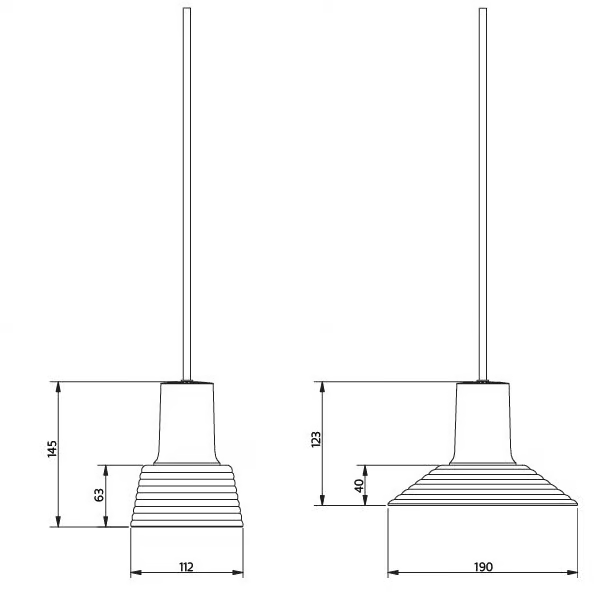

Overall dimensions
Information
A new series of lamps designed by Jens Fager
carefully considered and designed to the smallest detail. Compose, with its distinctive cast aluminium body, contains the very latest technology, including LED lighting and the opportunity of DALI control in large public environments.

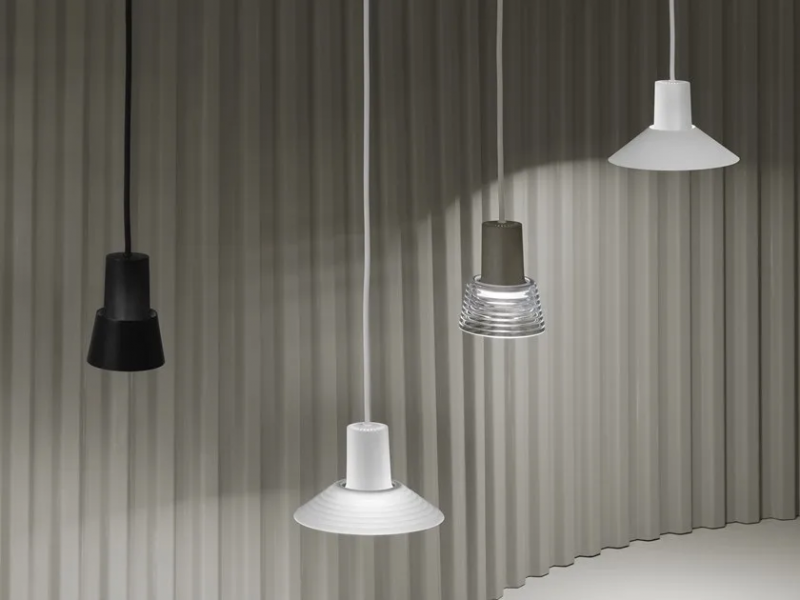

COMPOSE and its modular design works excellently as a pendant in its basic form or allows countless compositions due to the large number of variations in glass and metal shades. That makes it suitable for many projects. Both in repetition, as clusters in a hotel lobby, as well as single lights over a café table. The diffuse lens helps spread a pleasant and gentle light.
Finish: Pendant/fitting in painted aluminum. White RAL 9016, black RAL 9005, grey RAL 9007, green RAL 6020.
Shades in painted metal or clearglass, green glass, grey glass or matt-white glass, raw/untreated brass or copper. Textile cable in matching colour. With opal diffuser for comfort light or with matt clear diffuser for more concentrated downlight. Other colours on request.
LED info: Including dimmable LED retrofit light source 4,9W 2700K or incorporated LED module 10W dimmable with DALI. L80 > 50.000h.
InstallationIn ceiling hook, 2,3 m cable. Including ceiling cup. Connection DCL plug or terminal block 2x2,25mm2 or 3x2,25mm2.
IP20
