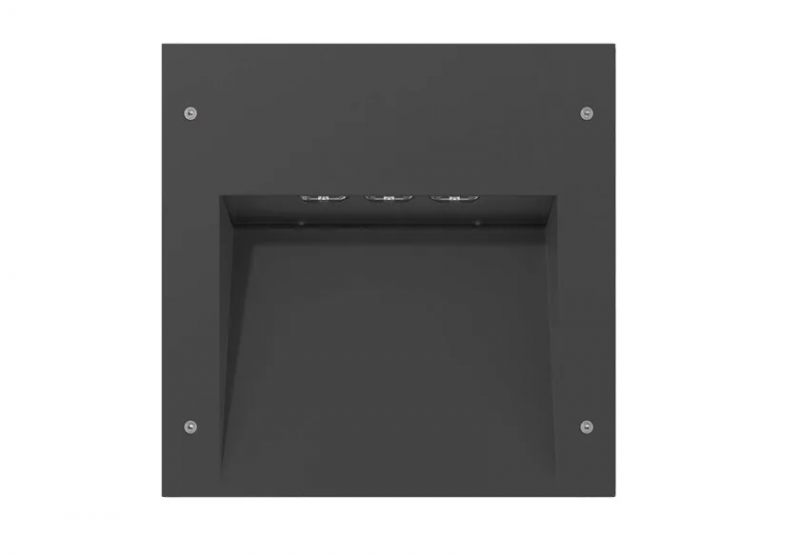

Insert+ 3

Wall recessed luminaire, for indoor and outdoor use in solid and hollow walls, for general lighting, comprising: - Die-cast painted aluminium housing and trim - Tempered clear glass diffuser - Diffuser in flat glass, internally frosted - Silicone gasket - External electrical connection with sealed plug-socket QUICK, complete with cable - Electrical connector for wires Ø 7 - Ø 12 mm - LED versions include 220/240 V 50/60 Hz safety transformer - Stainless steel locking screws - The fixture requires recessed fixing box which must be ordered separately - Supplied with 0,5 m pre-wired H07RN-F cable - Anti-tamper kit available as an accessory - Available for thourgh wiring as accessories. Connectors fit Ø 7 - Ø 10,5 mm and Ø 14 - Ø 17 mm cables Walk safely. Style and technique follow a direction of evolution rather than revolution. This successful series, without changing its name, yet with minimisation of forms, is the natural evolution of the historical series INSERT for traditional light sources, synonym since 1980 for wall recessed luminaire. This accent and marker series provide improved visual comfort, an immediate energy saving. The light, directed where is needed, offers the same luminous flux of the traditional light sources but with essential savings on the electricity bill. A specific subframe may be fixed on existing INSERT recess boxes providing an essential reduction of installation costs (INSERT+ 1 / 2). New solid-brass version is suitable for seaside installation, ideal for saline and windswept environments (INSERT+ 1). Completing this product series is a version with no visible screws (CLIPS) and the professional size INSERT+ 3, conceived for public applications. One of the variants of this model has high-performance beam spreads, successfully meeting the requirements of the French regulation on PMR (Personnes à mobilité réduite - People with reduced mobility).
