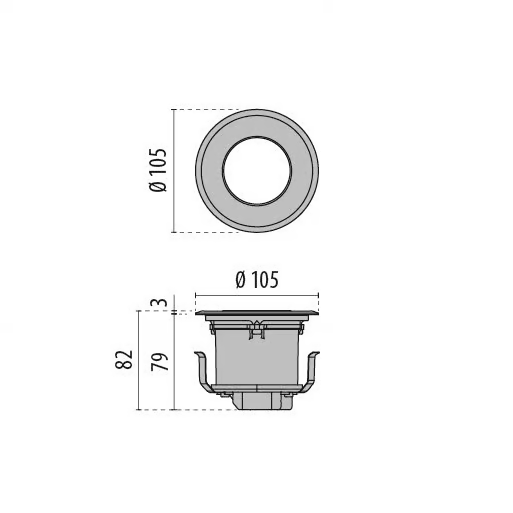

Overall dimensions
Information
Series of reduced depth in-ground luminaires, comprising:
- Black painted anodised die-cast aluminium housing
- High-transparency polycarbonate optics
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- Extra clear, toughened, flat glass diffuser
- Extra-clear toughened flat safety glass with acid-etched finish (C/EW versions)
- Die-cast aluminium trim powder-coated
- Closing ring in AISI 316 stainless steel with satin finish (stainless steel versions)
- Mains connection through waterproof connection system (WATER-STOP)
- Technopolymer recess box to be ordered separately
- Stainless steel locking hardware
- Floor mounted luminaires are usually subject to harsh conditions. For proper use and safety, they must be correctly installed by qualified personnel and according to the manual instructions
- Do not install luminaires in sunken areas
- RGBW and Tunable White versions to be powered with SELV drivers 48V DC, available as accessories to be ordered separately. Colour management through DMX interface
- DMX signal generator for RGBW and Tunable White versions to be ordered separately
- Photometric data measure according to UNI EN 13032-4 and IES LM-79-08
CRICKET+ is earthly light: walkable and drive-over elements, with an elegant and refined design of the highest quality materials, guarantee professional lighting effects.
These luminaires are ready to resist load, torsion, and impact accordingly to walk- and drive-over contexts. High-quality components and materials ensure reliability and longevity. This inground range is factory-sealed to ensure ease of installation, maintenance and peace of mind.
The solid-brass version is suitable for seaside installation and ideal for saline and windswept settings (MARINE).
New DMX colour change options in RGBW and tunable white (TW) are available for high emotional impact scenographic effects.
