Overall dimensions
Information

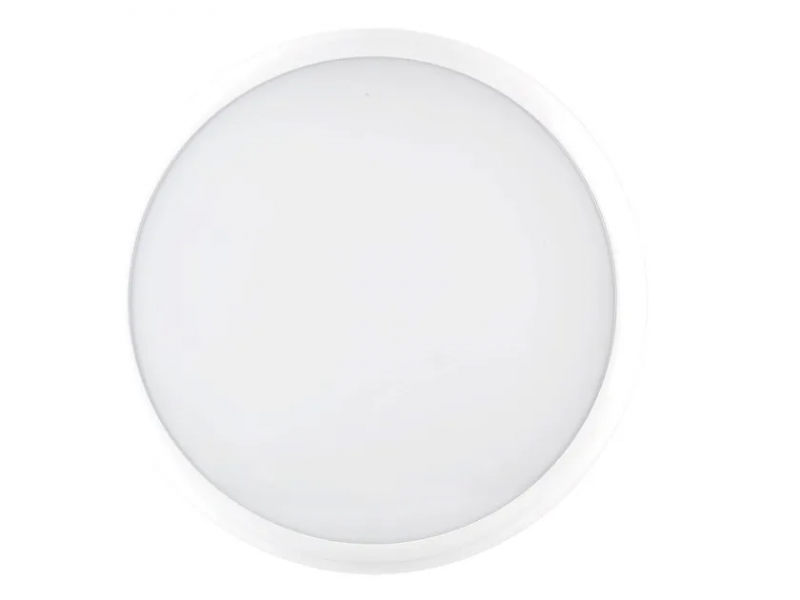

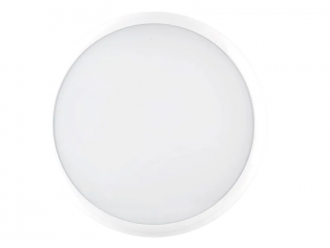

Cly - Wall and ceiling mounted luminaire for indoor and outdoor, comprising:
- Technopolymer housing, trim and diffuser
- Anti-ageing custom moulded silicone sealing gasket(s)
- Class II
- Tilting easy-maintenance SMD LED board
- Dip switch for LED CCT control at 3000K or 4000K, field adjustable
- EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
- Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
- The DLS+DETEK versions are supplied with an electronic device complete with High Frequency sensor and a daylight sensor (DLS). This is programmed to switch the device on automatically when natural light is low, ensuring constant secure lighting at 30% of the luminous flow and reaching 100% of the flow when any presence is detected
- The luminous flux data shown refer to the maximum power operating level
- Photometric data measure according to UNI EN 13032-4 and IES LM-79-08
The CLY ceiling and wall-mounted luminaire guarantee a perfectly homogeneous light, and the colour temperature can be field-adjusted with a switch (MULTIWHITE). The high-speed and straightforward assembly and precise shape make the series a general lighting Passepartout. Dimmable, emergency and sensor options make the offer complete.
CLY is easy to install and fits in all environments. As a unique sign of distinction, a thread of light travels the circular body, softly illuminating the surface.
