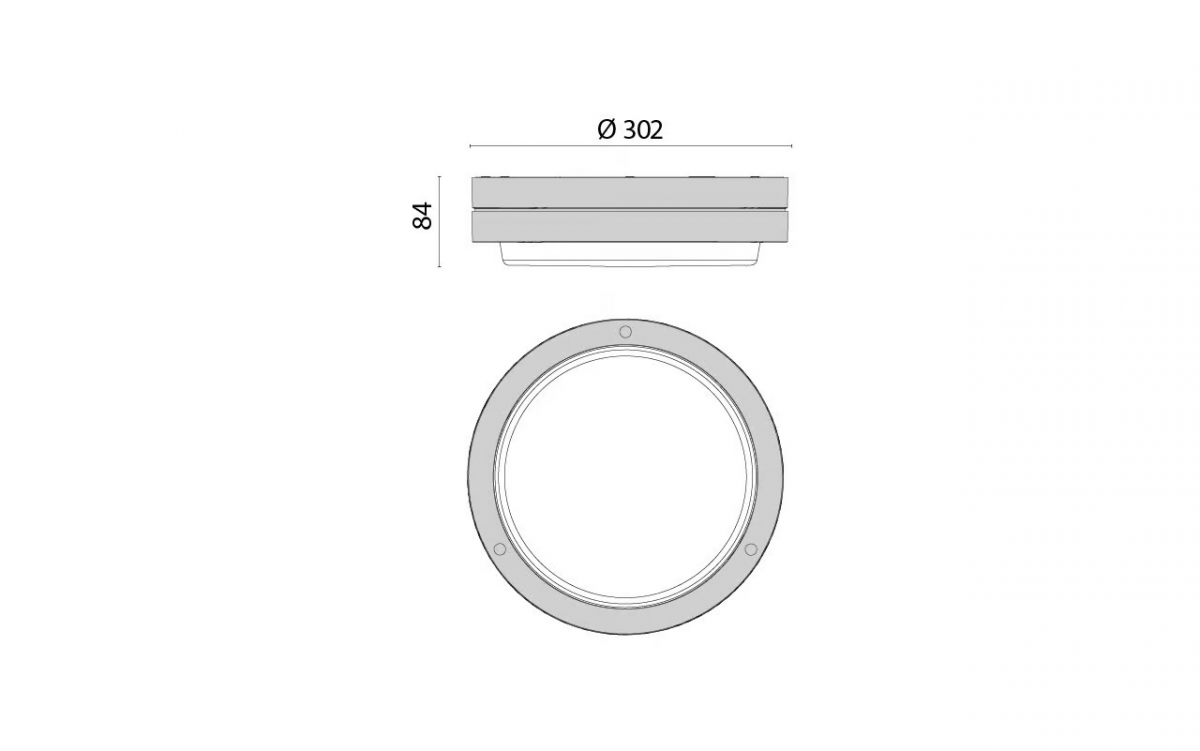

Overall dimensions
Information
Series of wall and ceiling mounting luminaires for indoor and outdoor use, comprising:
Die-cast painted aluminium housing and trim
Powder polyester painting process optimized against UV rays in 13 different steps
Pressed glass diffuser, painted inside
Silicone gasket
Through wiring possible
Stainless steel locking screws
Analogue dimmable HF ballast, 1-10 V
Dimmable DALI
EM/3P versionsl is designed for multipurpose and 3 hours sustained emergency lighting
Hyper-frequency (HF) sensor operating at a frequency of 5.8 Ghz+/- 75 Mhz
SMART versions are equipped with customized electronic devices that allows energy savings reducing the luminous flux, granting always a 30% working flux for safety lighting and reaching 100% flux when necessary
SMART HF versions are complete with integrated High Frequency sensor that manage from 30% up to 100% of the flux when it detects the presence of people
SMART DA versions are suitable for use in systems with two separate lines where the demand for 100% of the flux is managed by a push button or line sensor
Delivered with SMD self heating dissipated tiltable power LED Metal-Core board
The rigorous shape of the pure and modern geometric line makes the BLIZ series versatile and suitable for residential and public complexes. It is available in different shapes and sizes, and the smaller size can be post mounted and customised with signage options.
The aesthetic value combines with high resistance to external agents through noble materials such as glass and powder-coated cast aluminium.
