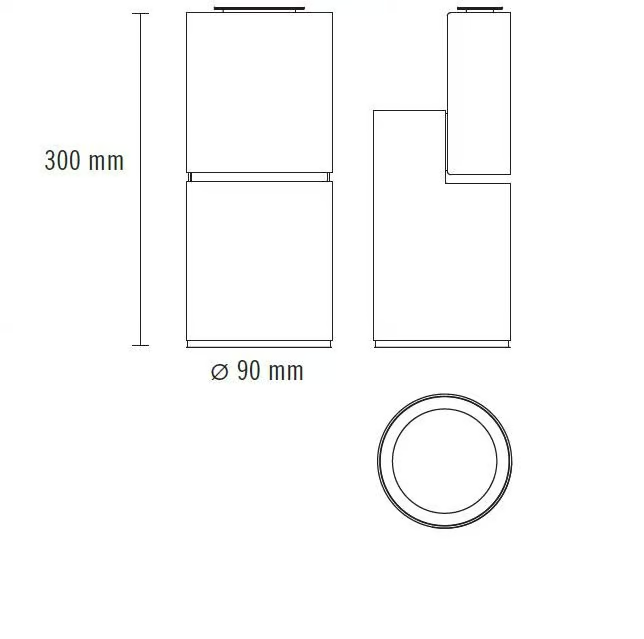

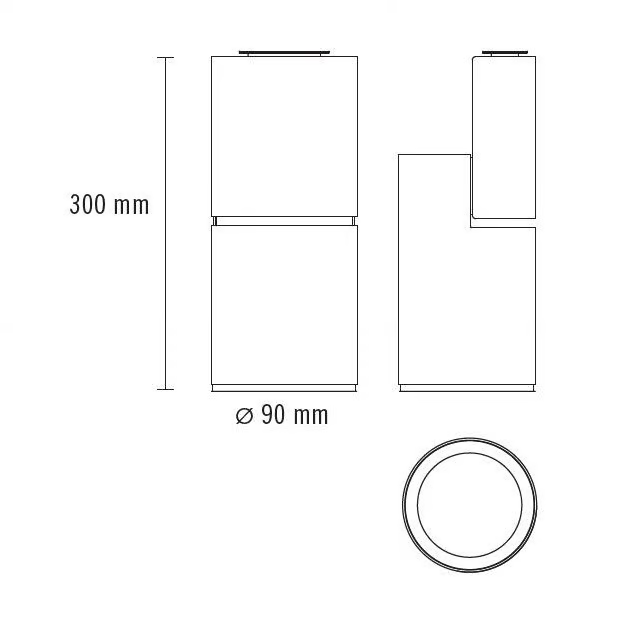

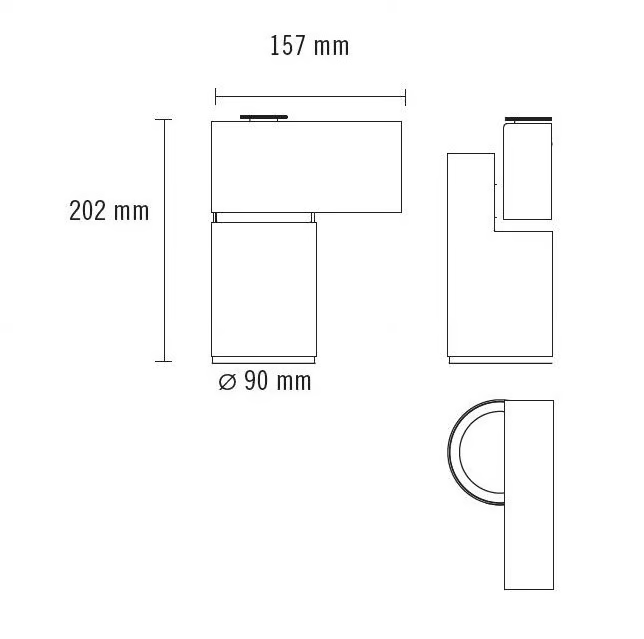

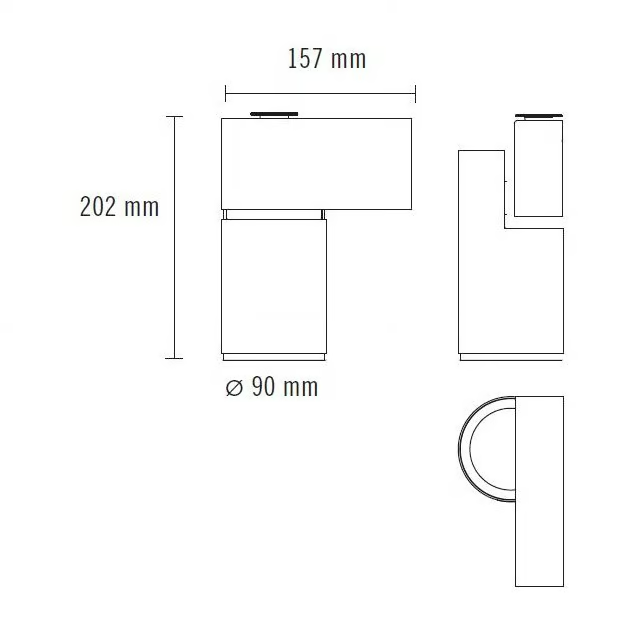

Overall dimensions
Information

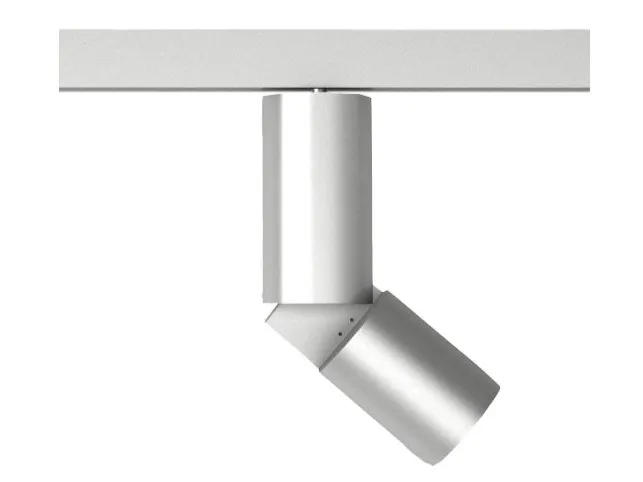

Aluminum LED projector with three-phase rail adapter or base to the ceiling.
Possibility of customization in any RAL colour (for painting). Electrolytic coating as special finish under request.
Accessories: Honeycomb, sculpture lens and optical filters.
INSTALLATION
Installation of the support piece to the ceiling or wall with 2 screws. The spotlight is fixed without any tools required. Ready to be installed in universal tracks (3 switches).
Technical features
CRI 80/90
Colour Temperature 2700K/3000K/4000K
Index Protection IP 20
Voltage 230V
Driver Yes
Lifetime 50.000h
Colour Desviation 2 step McAdam
Tilting 90º
Rotation 355º
Modest and elegant, BCN Air family is made up of suspended cylindrical bodies made of high-performance aluminum. Its simple and minimalist design allows for countless combinations playing with its different lengths, diameters, finishes and accessories. Available in all RAL color chart and also in an electrolytic coating for finishes in gold, copper and graphite. The more diameter the cylinder has, the more power the luminaire gains and the option of putting special LEDs for businesses. This family offers a wide range of possibilities to adapt to the requirements of the environment. In addition, we also have it in ceiling surface and spotlight version.
