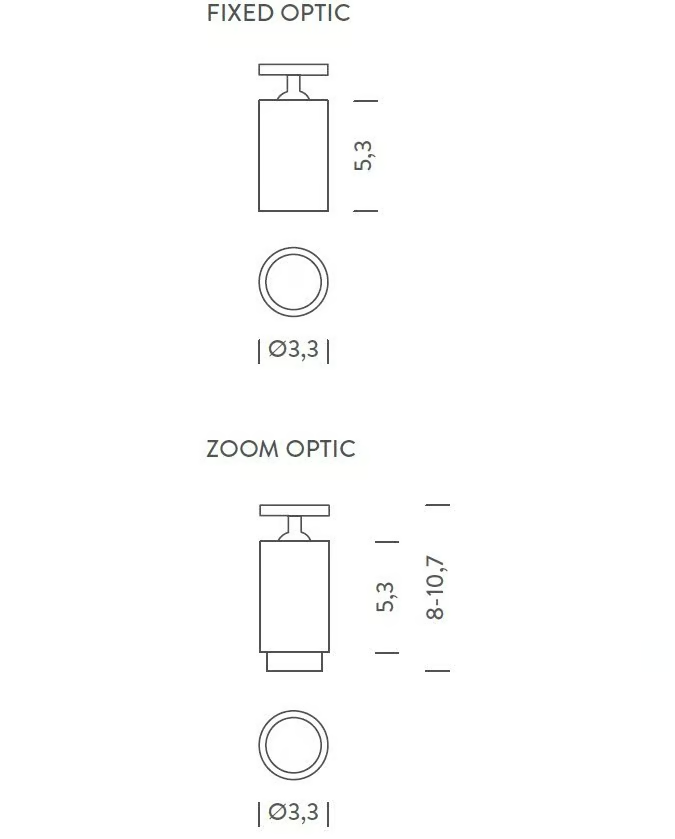

Overall dimensions
Information

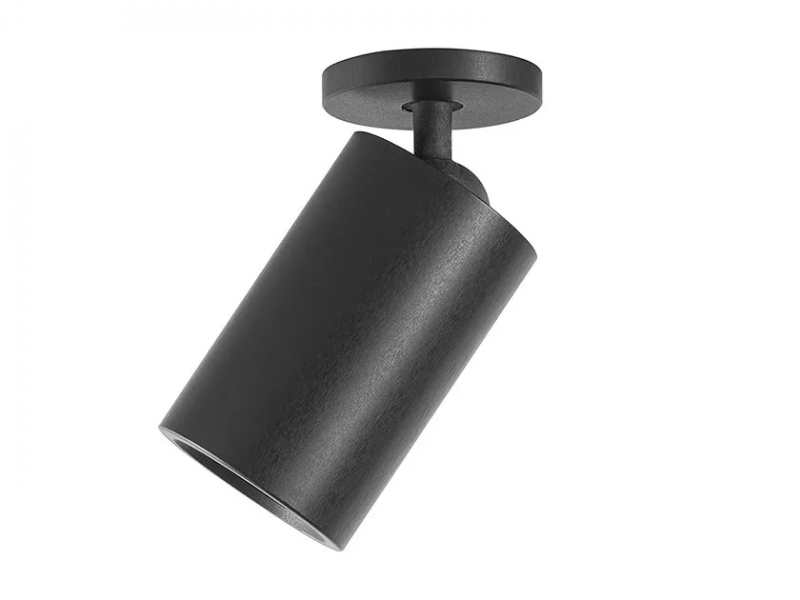

FLEX SPOT family is dedicated to accent lighting in showcases or small exhibitions. The family is composed by two surface-mounted spots: FLEX CEILING with fixed and variable optic, with different beam angels and FLEX TRACK SYSTEM is the dedicated on-track system on which the spots are fixed through a magnetic / mechanic fixing system.
Black anodized aluminium body. Integrated aluminium joint allow fixation and adjustment of the spot orientation. No cables are visible. CRI 90.
FIXED OPTIC
- 3000K - 15°: Source LED spot | | Total power 6W | Emission Direct 15° | Tension 500mA | Color temperature 3000K | Initial luminaire efficacy 50lm/W | Initial chromaticity SDCM < 3 | Typ cri 90 | Energy class A+ | Ip class 40
- 3000K - 25°: Source LED spot | | Total power 6W | Emission Direct 25° | Tension 500mA | Color temperature 3000K | Luminous flux 308lm | Initial luminaire efficacy 50lm/W | Initial chromaticity SDCM < 3 | Typ cri 90 | Energy class A+ | Ip class 40
- 4000K - 15°: Source LED spot | | Total power 6W | Emission Direct 15° | Tension 500mA | Color temperature 4000K | Luminous flux 343lm | Initial luminaire efficacy 50lm/W | Initial chromaticity SDCM < 3 | Typ cri 90 | Energy class A+ | Ip class 40
- 4000K - 25°: Source LED spot | | Total power 6W | Emission Direct 25° | Tension 500mA | Color temperature 4000K | Initial luminaire efficacy 19lm/W | Initial chromaticity SDCM < 3 | Typ cri 90 | Energy class A+ | Ip class 40
ZOOM OPTIC
- 3000K: Source LED spot | Total power 4,2W | Emission Direct adjustable 7°-45° | Tension 350mA | Color temperature 3000K | Luminous flux 76lm (45°) | Initial luminaire efficacy 19lm/W | Initial chromaticity SDCM < 3 | Typ cri 90 | Energy class A+ | Ip class 40
- 4000K: Source LED spot | Total power 4,2W | Emission Direct adjustable 7°-45° | Color temperature 4000K | Tension 350mA | Typ cri 90 | Energy class A+ | Ip class40
ACCESSORIES: Drivers 350mA
