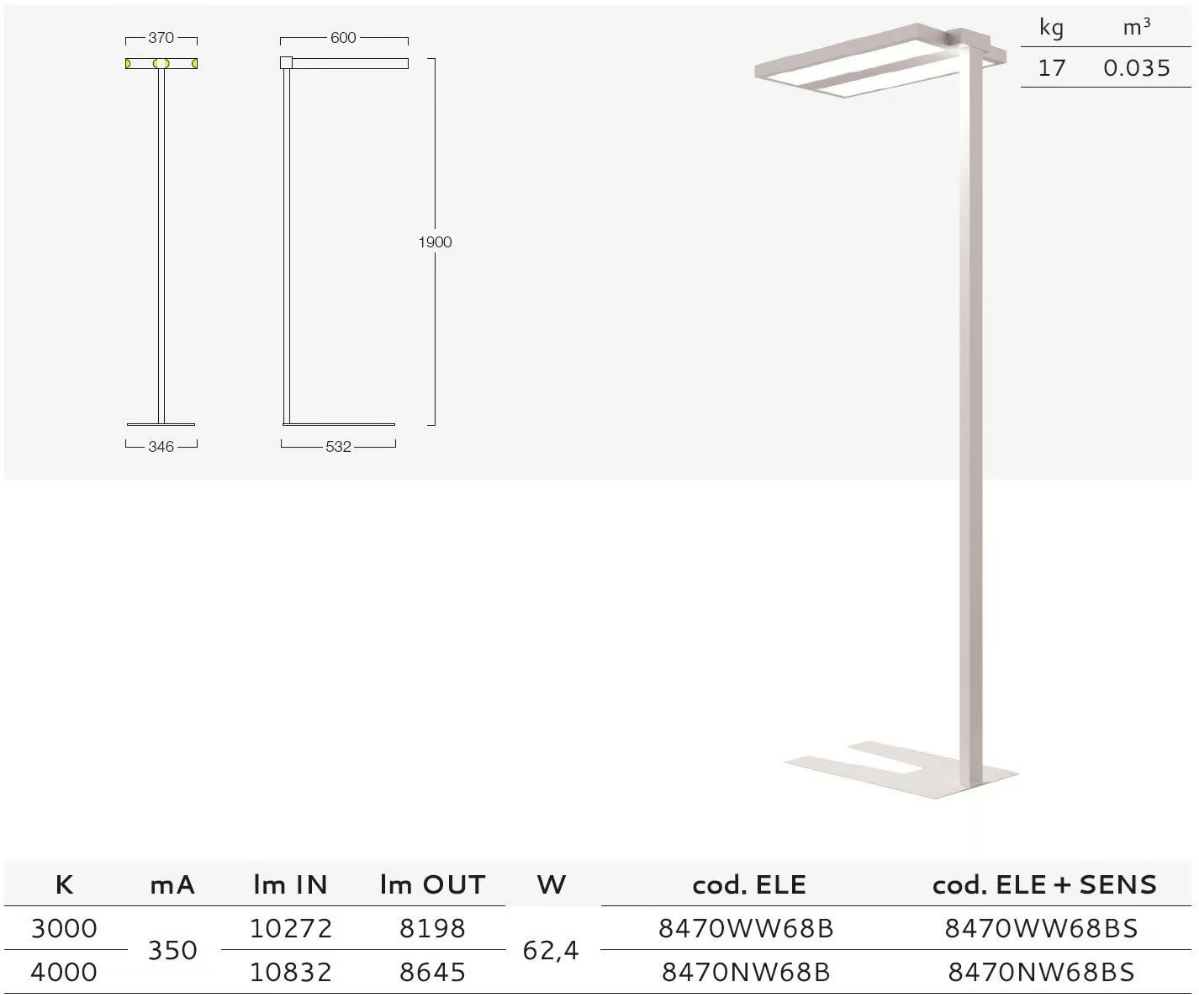

Overall dimensions
Information

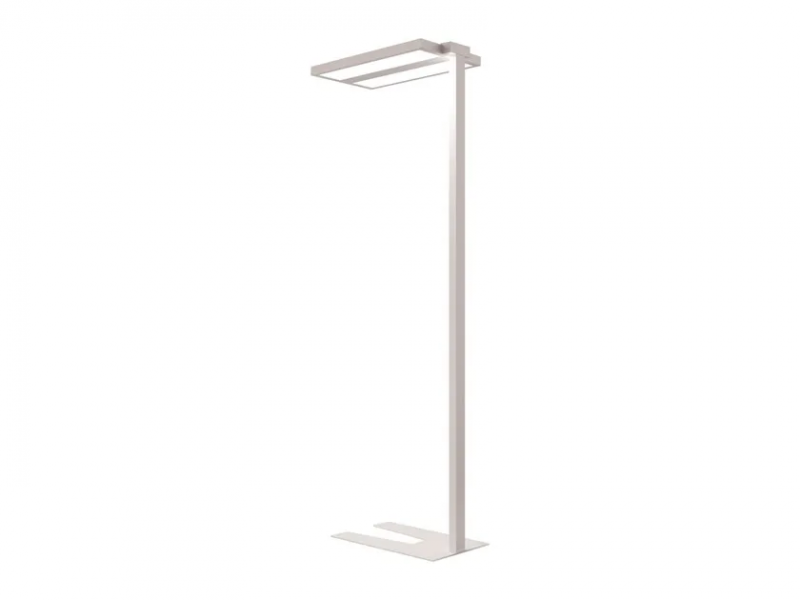

ZURIGO D/I 8470 is a floor lamp in sheet steel, painted with SOLVENT FREE, semi-bright white epoxy polyester powders, thermosetting at 180°C, after phosphate treatment. Base in sheet steel. Support made of extruded aluminum.
Mountings: Floor lamp
Light emission: Direct/Indirect, symmetric
Body: In sheet steel, painted with SOLVENT FREE, semi-bright white epoxy polyester powders, thermosetting at 180°C, after phosphate treatment.
Base in sheet steel.
Support made of extruded aluminium.
Optical device:
Upper diffuser in transparent polycarbonate
Lower diffuser in microprismatic, transparent methacrylate
Light source: LED CRI ≥80 Ra
• 3000K
• 4000K
Wiring: Class I
Feeding 220~240 V / 50-60 Hz
Feeding cable with plug
Performance data:
Efficiency A+
Protection level IP20UGR ≤19
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-4
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• Dimmable electronic ballast
• DALI dimmable electronic ballast (if possible)
• RA90
