Vector frame l 9756

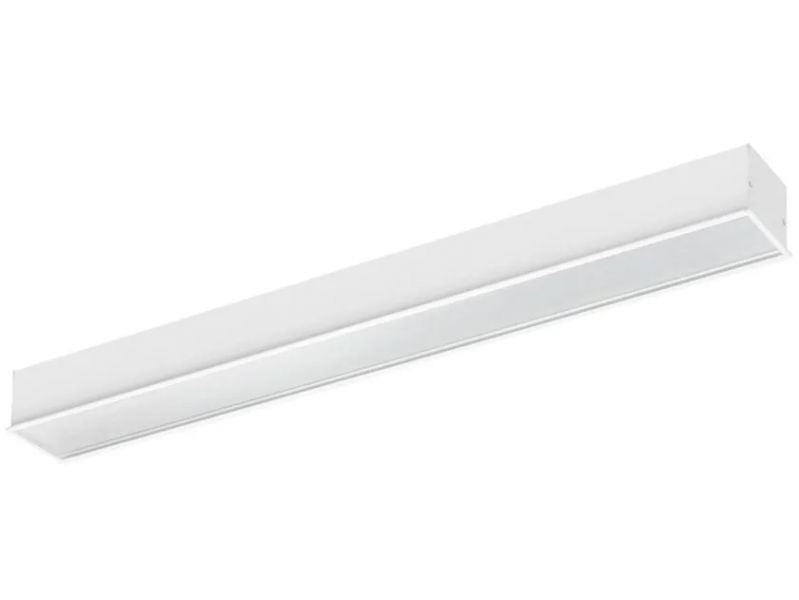

VECTOR FRAME L 9756 is a recessed powder coated aluminium lamp for false ceiling. Mountings: Recessed plasterboard false ceiling Light emission: Direct, Symmetric Body: In extruded aluminium, painted with SOLVENT-FREE, white, black, grey or other colours upon request, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment. Removable gear tray on which the wiring components are mounted. Cap in die-cast aluminium. Optical device: Microprismatic methacrylate diffuser Light source: LED CRI ≥80 Ra • 3000K • 4000K • Coloror tolerance 3 MacAdam (3 SDCM) Wiring: Class I Feeding 220~240 V / 50-60 Hz Performance data: • Efficiency A+ • Protection level IP20 • Lifetime (Ta=25°C) 50000h L80B10 Marks: CE Regulations: EN 60598-1 EN 60598-2-1EN 60598-2-2 EN 62031 Photobiological safety of lamps and lamp system: EN 62471 IEC/TR 62778 Rischio esente – GR 0 Directives: 2014/35/UE 2014/30/UE VERSIONS UPON REQUEST • Dimmable electronic ballast • DALI dimmable electronic ballast (if possible) • Ra 90
