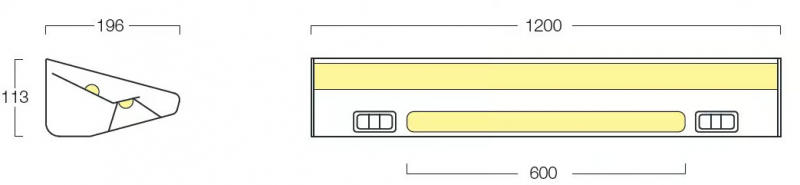

Overall dimensions
Information

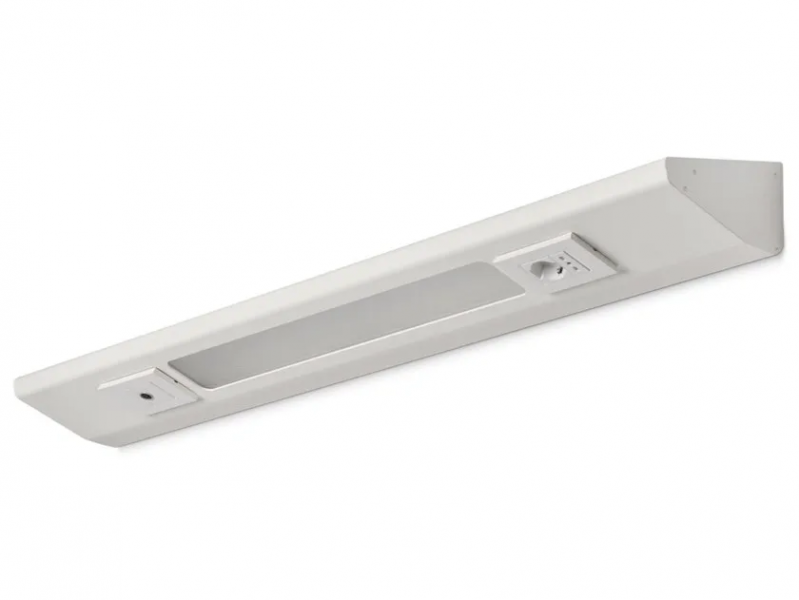

TESTALETTO 7670 is a LED powder coated aluminium wall lamp.
Mounting Wall. Included accessory.
Body Extruded alluminium, painted with SOLVENT FREE, epoxy polyester powders, thermosetting at 180°C, after phosphate treatment.
Light emission direct indirect
reading light: handled by on/off switch
general light: handled by on/off switch
inspection light: direct + indirect
Optical device
Indirect opal methacrylate
Direct microprismatic methacrylate
Light source CRI > 80
Color tollerance: 3 Step MacAdam
Lifetime: 80000 hrs L80B20
Wiring Class Ist
Power supply 220~240V Ac 50-60 Hz
Electric controls and services
1.unipolar switch (lights)
2.Unipolar pull button (first aid)
3.socket UNEL 2P+T 16A
4. bypass socket 2P+T 16A
Performance data
Protection rate: IP40
Regulations
EN 60598-1
EN 60598-2-1
Electro-medical device CLASS Ist
(93/42/CEE)
Photobiological safety
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives
2014/35/UE
2014/30/UE
UPON REQUEST VERSIONS
LED CRI > 90
DALI dimmable electronic ballast
Emergency unit: 3 hrs
Antibacterial paint
Special electric controls and services
Night light
