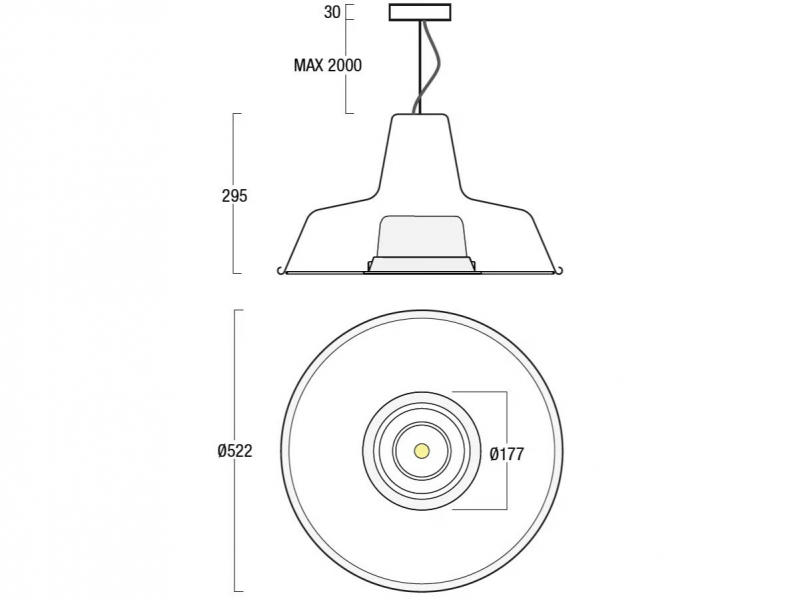

Overall dimensions
Information

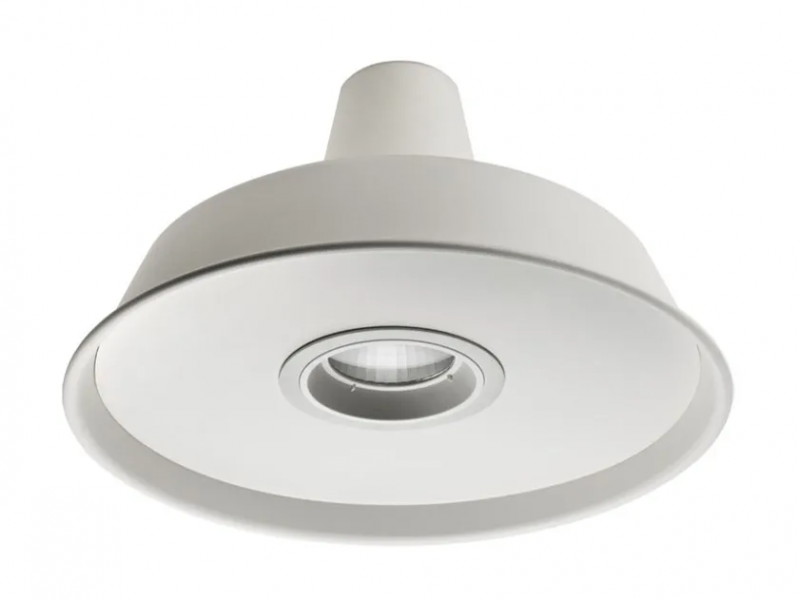

SOFIA 5150 is a LED powder coated aluminium pendant lamp.
Mountings: Suspended fitting
Light emission: Direct, Symmetric
Body: In turned aluminum 2mm thick, painted with SOLVENT FREE epoxy polyester powders, thermosetting at 180 ° C, with phosphating surface pre-treatment.
Optical device:
Reflector in anodized aluminum:
• spot: 24°
• flood: 30°
• wide flood: 50°
Light source: LED CRI ≥ 90 Ra (with opal diffuser)
• 3000K
• 4000K
• Color tolerance 2 MacAdam (3 SDCM)
• Lifetime (Ta=25°C) 50000h L80B10)
Wiring: Class I
Feeding 220~240 V / 50-60 Hz
Performance data:
• Efficiency A+
• Protection level IP 20
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST
• DALI dimmable electronic ballast.
