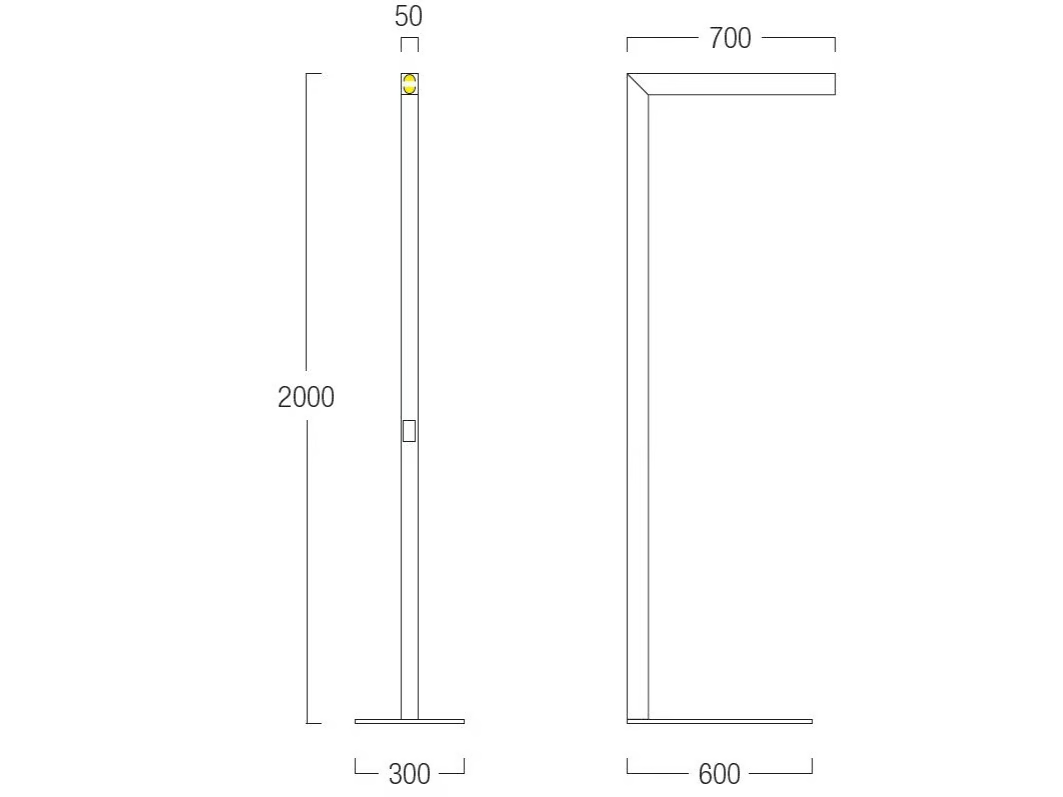

Overall dimensions
Information

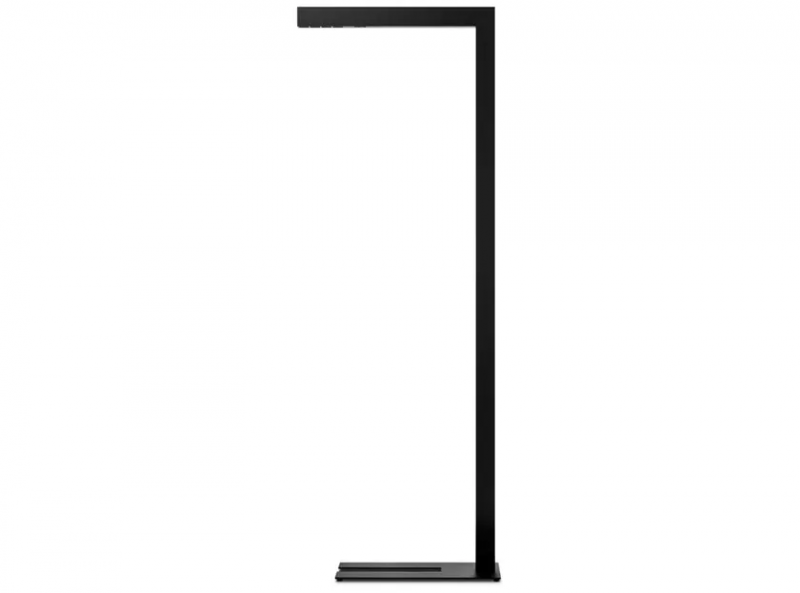

PIANTANA LENS 8480 is a LED direct-indirect light reading powder coated aluminium floor lamp.
Mounting Floor
Body iron’s sheet head, painted with SOLVENT FREE, epoxy polyester powders, thermosetting at 180°C, after phosphate
treatment.
Basement made by iron’s sheet
Light emission Direct + indirect, Symmetric
Optical device
Indirect polycarbonate transparent diffuser
Direct Darklight lenticular optics, glossy black polycarbonate cells
Transparent PMMA lens (efficiency 87%)
Light source CRI > 80
Color tollerance: 3 Step MacAdam
Wiring Class Ist
Feeding 220~240V Ac 50-60 Hz
Pefromance data
Protection rate: IP20
UGR < 16
Normatives
EN 60598-1
EN 60598-2-4
Photobiological safety
EN 62471
IEC/TR 62778
Exempt risk – GR 0
Directves
2014/35/UE
2014/30/UE
UPON REQUEST VERSIONS
DALI dimmable electronic ballast
Daylight + presence sensor
LED CRI > 90
