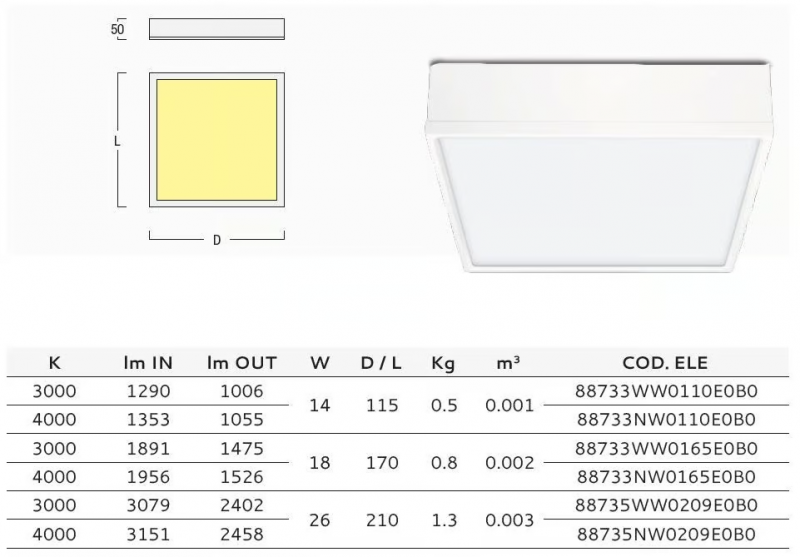

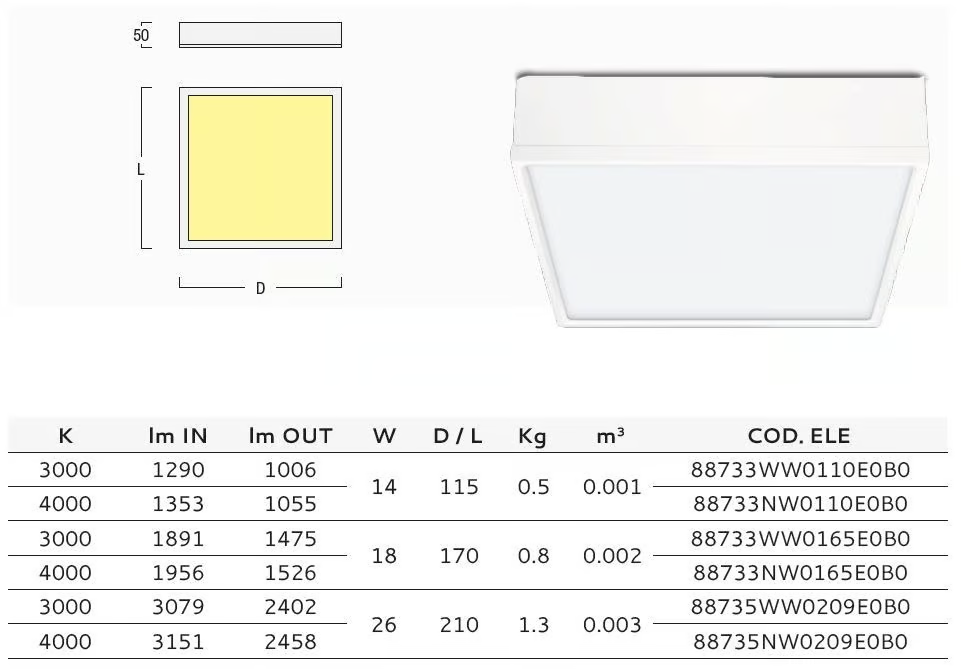

Overall dimensions
Information

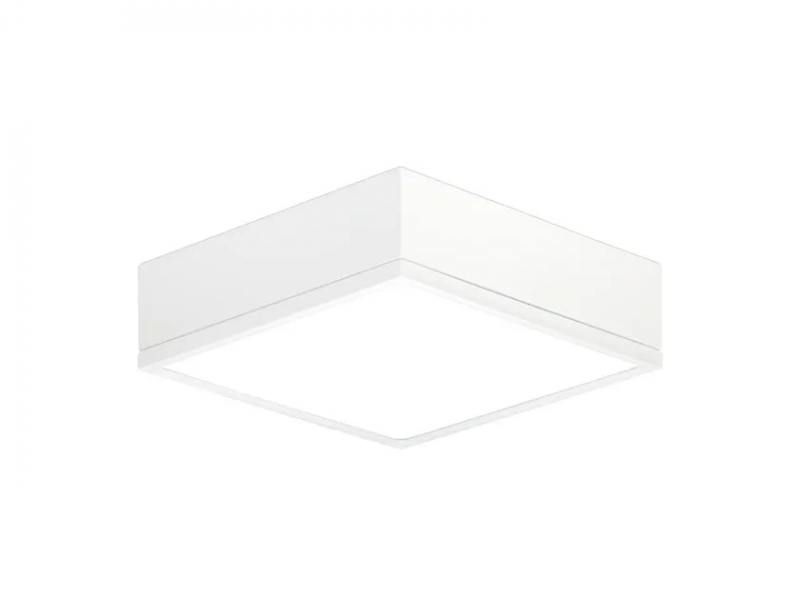

MILANO SQUARE 8873 is a surface mounted fitting with die-cast aluminum body, painted white. Diffuser in opal methacrylate, thermoformed in one piece.
Mountings: Surface mounted fitting
Light emission: Direct, Symmetric
Body: Made of white painted die-cast aluminium
Optical device: Diffuser in opal methacrylate
Light source:
• LE CRI ≥80 Ra
• 3000K
• 4000K
• Lifetime (Ta=25°C) 50000h L70B50
Wiring: Class II
Feeding 100~240 V / 50-60 Hz
Performance data: Energetic efficiency A+
Protection level IP43
Marks: CE
Regulations:
EN 60598-1
EN 60598-2-1
EN 62031
Photobiological safety of lamps and lamp system:
EN 62471
IEC/TR 62778
Directives:
2014/35/UE
2014/30/UE
VERSIONS UPON REQUEST (if possible)
• Dimmable electronic ballast PUSH
• Dimmable electronic ballast 1-10V
• Dimmable electronic ballast DALI
