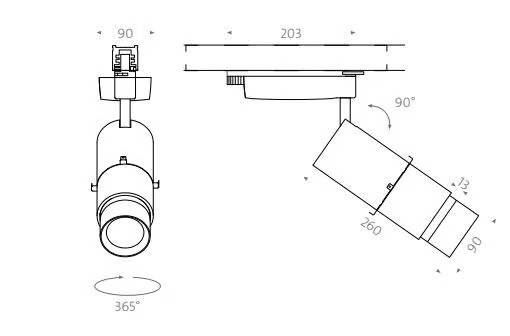

Overall dimensions
Information

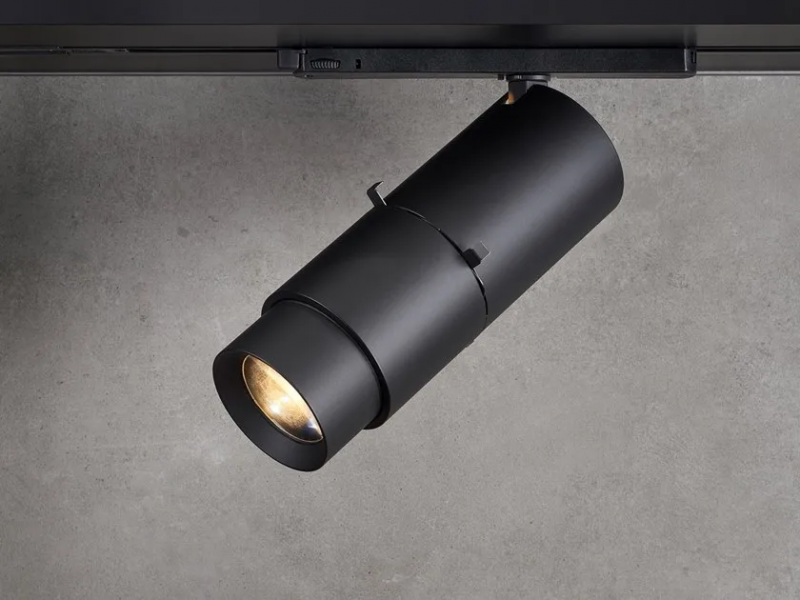

With the lenses and slides of the seventies 70’s plus contour spotlight, its possible to focus light on artworks so that they appear to be crisply lit from within. The continuously adjustible focussing lens is used to sharply define the artwork borders and the four contour slides are used to determine the form and size of the lighting surface. Trapezoidal, parallelogram, or rectangular, any shape with four corners is possible – and continuously adjustable. The brightness is regulated with a potentiometer on the track adaptor.
Another advantage of the contour spotlight: the possibility to remove glare from the emitted light without creating light scatter on the housing.
The suitability for museum use has been tested and approved by an independent research institute (excellent color reproduction and relative potential for causing light damage with regard to preventative conservation).
Material
Aluminum powder-coated
Rotatability/Slewing capacity
365° rotatable and 90° tiltable
Benefits
flicker-free
HDTV-suitable
Color consistency 2-Step/3-Step MacAdam Ellipse
LED module
14,5 mm
23 WL90 (10k) > 55.000 h (IES LM-80 / TM-21)
Illuminatable format from a distance of 3 m:
max. 84.1 cm × 118.9 cm
Control gear
inclusive
