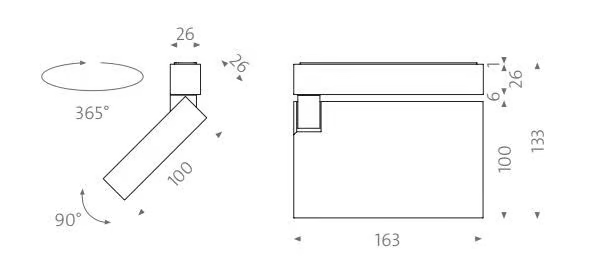

Overall dimensions
Information
This series features a unique design vocabulary. Our specially developed and registered production technology (folding technology) creates precise edges with no visible connections and allows the housing to be made using a single plate. Since it is permanently
integrated into the heat sink, it increases the available cooling surface area and is therefore of thermal importance for the light. Thanks to professional lens technology, the characteristic, square light-emitting surface creates a rotationally symmetrical beam characteristic.
Material
Aluminum powder coated
Rotatability/Slewing capacity
365° rotatable and 90° tiltable
LED module
15 W
L90(9k) > 63.500h (IES LM-80 / TM-21)
Color rendering index
Ra > 95 (typ. 97)
Control gear
inclusive
Operating area
AC 220V–240V / 50Hz–60Hz
