Marilux 930 swing
ICB-12040
Маркиза
Choice of fabricsAll fabrics made from sunvas snc und sunsilk snc in the current markilux collection, including the exclusive visutex fabric series, are available. A valance is supplied as standard.DimensionsThe markilux 930 swing is available up to a maximum width of 500 cm. The maximum extension is 300 cm. OperationManual operation by means of a stainless steel winding handle. On request a hard-wired electric motor or a radio-controlled motor with remote control operation can be fitted.
Information

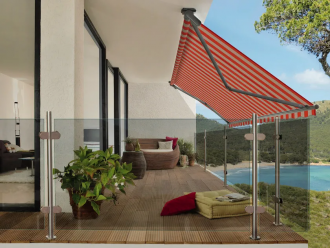

markilux 930 swing - Folds up tight.Open folding-arm awning with unique pivoting mechanism. Elegant and chic. Designed down to the last detail.The start to a roaring summer It is small, elegant and extremely delicate thanks to its torque bar-free construction. An awning for more style and atmosphere. The markilux 930 swing is above all suited for installation under overhanging roofs, where additional protection of the cover and mechanics is not required. An intelligent pivoting mechanism lends it a particularly compact and flat appearance when closed. During the extension process the awning remains horizontal at first and then pivots into the pre-set pitch. The adjustment screws at the brackets can be used to change the pitch from 5° to 80°.The windlock mechanism prevents the awning from flipping up in windy conditions. The joints in the upper arm lock the lateral profiles and releases them again only on retraction. The tubular, closed front profile ensures sufficient stability and a smooth appearance. Folding arms with improved power transference ensure good cover tension. The awning is suited both for top and face fixture. In the case of face fixture it might be combined with an additional coverboard, for example with the new markilux system coverboard.
