Overall dimensions
Information

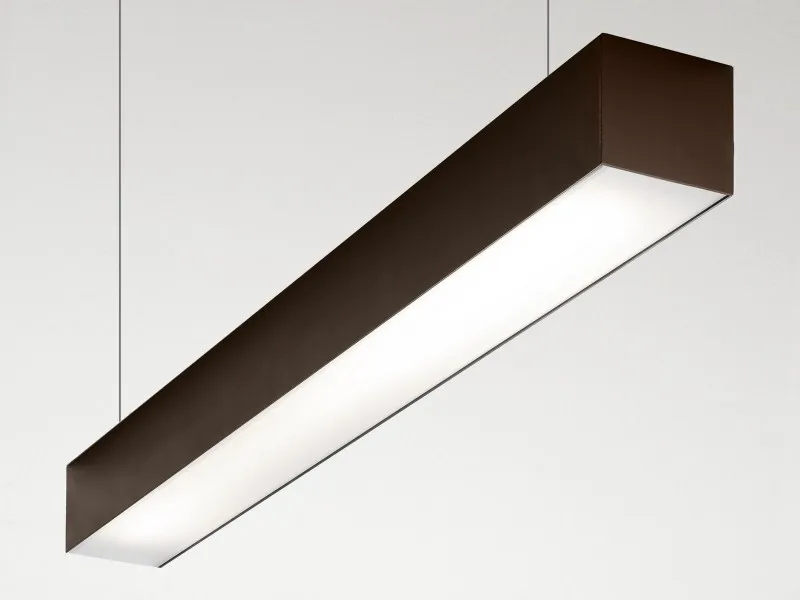

Series of recessed, trimless recessed, ceiling-mounted, wall-mounted and suspended fixtures for direct diffused lighting. For integrated linear LED sources or for T16 fluorescent lamps. 230/240V 50/60Hz integrated electronic supply. Body in 75x78 mm. extruded aluminium. Painted or anodized finish. Super-slim 5 mm. width edge trim. Complete with false-ceiling/ wall fixing brackets, provided with micro-regulation screw system, side end caps and opal white or microprismatic (conform to EN 12464-1 EU directive) polycarbonate diffuser or high efficiency dark-light aluminium grid. The fixtures become system modules if installed within the Container profile (see Systems section). Protection degree IP40/IP43/IP54. Extruded aluminium wallbox for recessed installation in concrete or brick walls, available as an accessory.
