Waterfront
ICB-92525
Садовый фонарь
2020

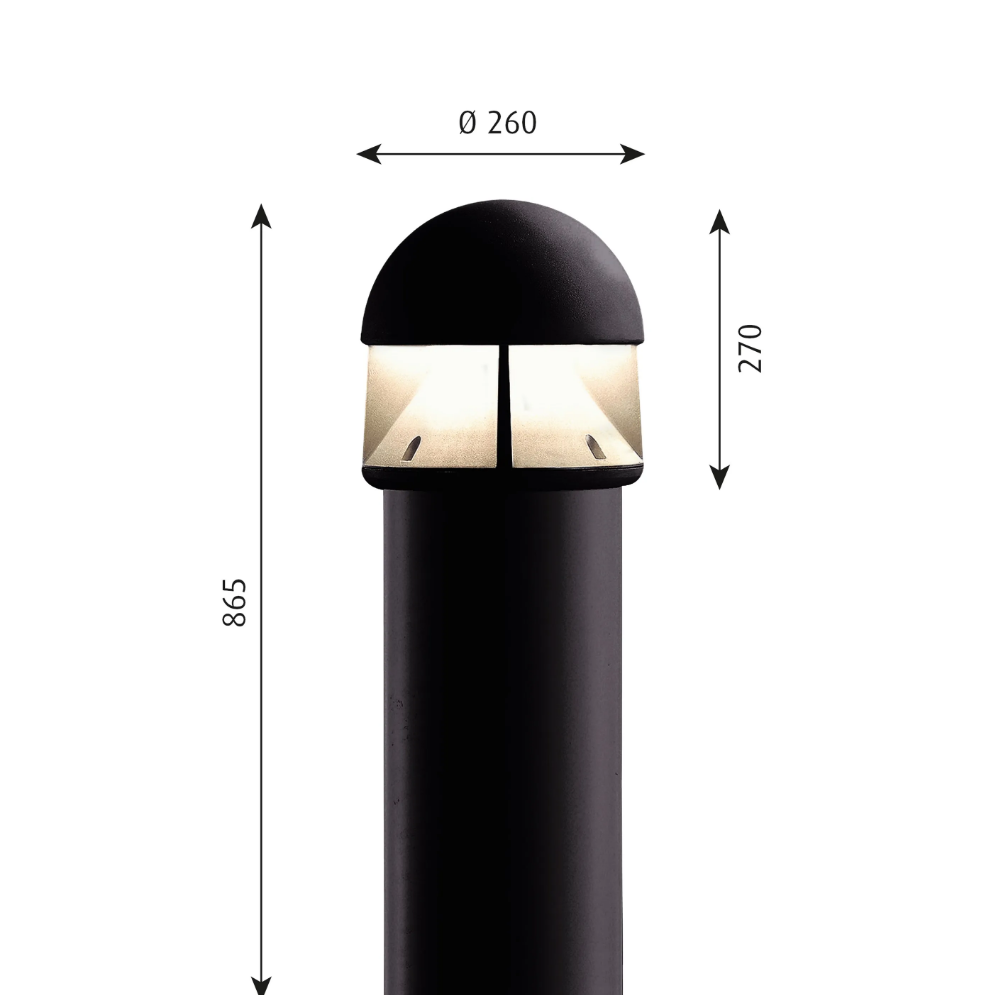

Width x Height x Length (mm); 265 x 865 x 265 Max 19.3 kg
Overall dimensions
Information
The fixture emits 100% glare-free downward light. The light distribution is symmetric and soft. The four supports create an comfortable symmetric light pattern at ground level.
Mounting
In-ground struts: Yes. Terminal block positioning: In fixture head. Looping: Approved, max 5x2,5mm². Driver positioning: In fixture head. Max. installation cable: 1 or 2x5x2,5mm² or depending on installation box. Post f/in-ground installation: Height excluding fixture head: 1195mm, including 600mm below ground. Bollard with base plate for surface mounting: Height excluding fixture head: 595mm. Post diameter 210mm.
Specification notes
Post with base plate only available with Class I.
Finish
Aluminium coloured with textured surface or graphite with textured surface, powder coated.
Light source & energy class
Energy class
Light source LED 3000K 28W
Materials
Enclosure: Injection moulded clear polycarbonate. Housing: Die cast aluminium. Top: Die cast aluminium. Post: Extruded aluminium. Base plate: Die cast aluminium.
Class
Ingress protection IP65. Electric shock protection I w. ground, II w/o ground. IK 10.
