Toldbod 220/290
ICB-85687
Настенный/потолочный светильник
2020

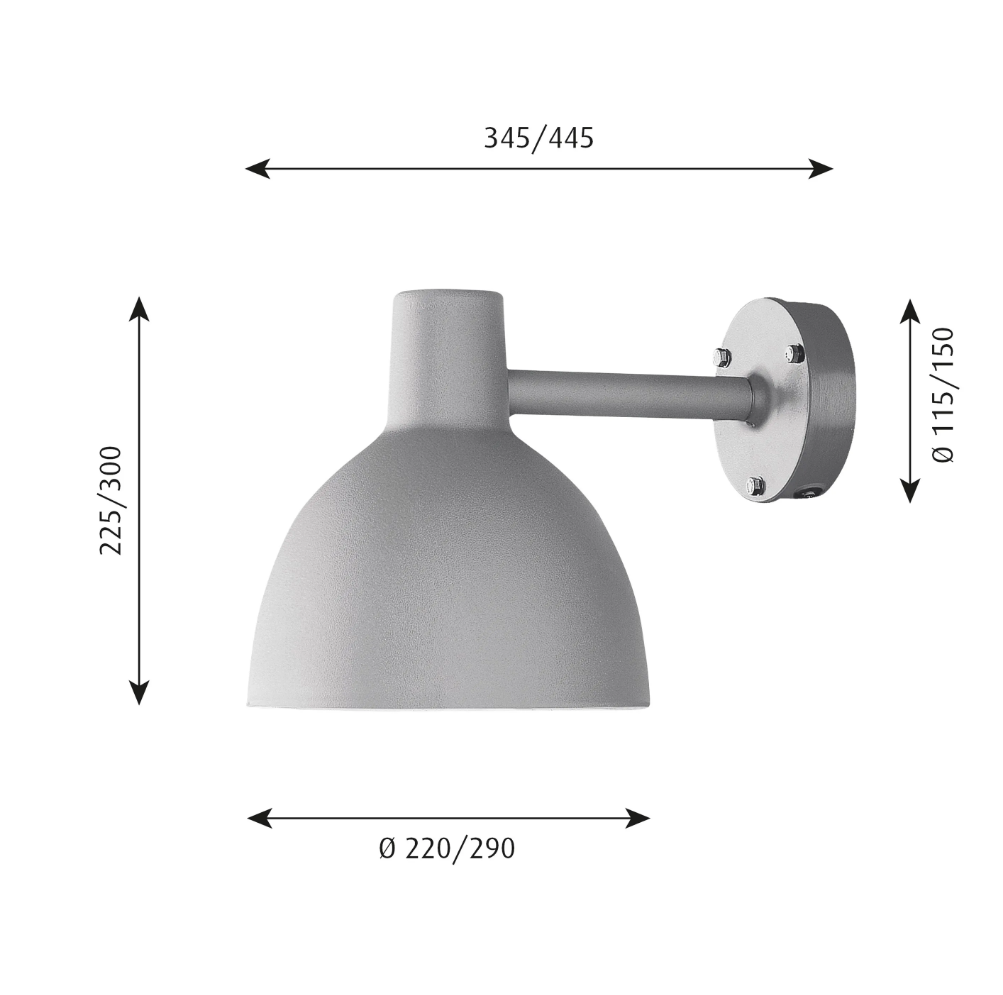

Width x Height x Length (mm); 220 x 255 x 345 Max 2.8 kg; 290 x 300 x 445 Max 6.9 kg
Overall dimensions
Information
The light is directed 100% downwards and the shade has a matt white painted interior emitting a soft, diffused, comfortable light. The fixture fulfils full cut-off criteria.
Mounting
Terminal block: 1x3x2.5mm², LED: 1x5x2,5mm². Cable entries: Ø 290: 2x rear entries and 2x bottom entries to Ø 10- 14.5mm cable. Ø 220: 3x rear entries and 2x knock outs in bottom to Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
Specification notes
Toldbod Ø220 is only available in 100W E27. Ø290 is only available for 27W LED, 1x26/32/42W TC-TEL and vap. lamps 13140 (50W HSE-I, 70W HSE-I, 150W E27.) The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Finish
Aluminium coloured with textured surface or black with textured surface, powder coated.
Light source & energy class
Energy class
Light source Inc. & vap. lamps 13055
Materials
Fixture head: Die cast aluminium. Shield: Injection moulded clear polycarbonate. Wall box: Die cast aluminium. Arm: Extruded aluminium.
Class
Ingress protection, Ø 220: IP43, IK09. Ø 290: IP44, LED: IP65, IK08. Electric shock protection I w. ground.
