Skot

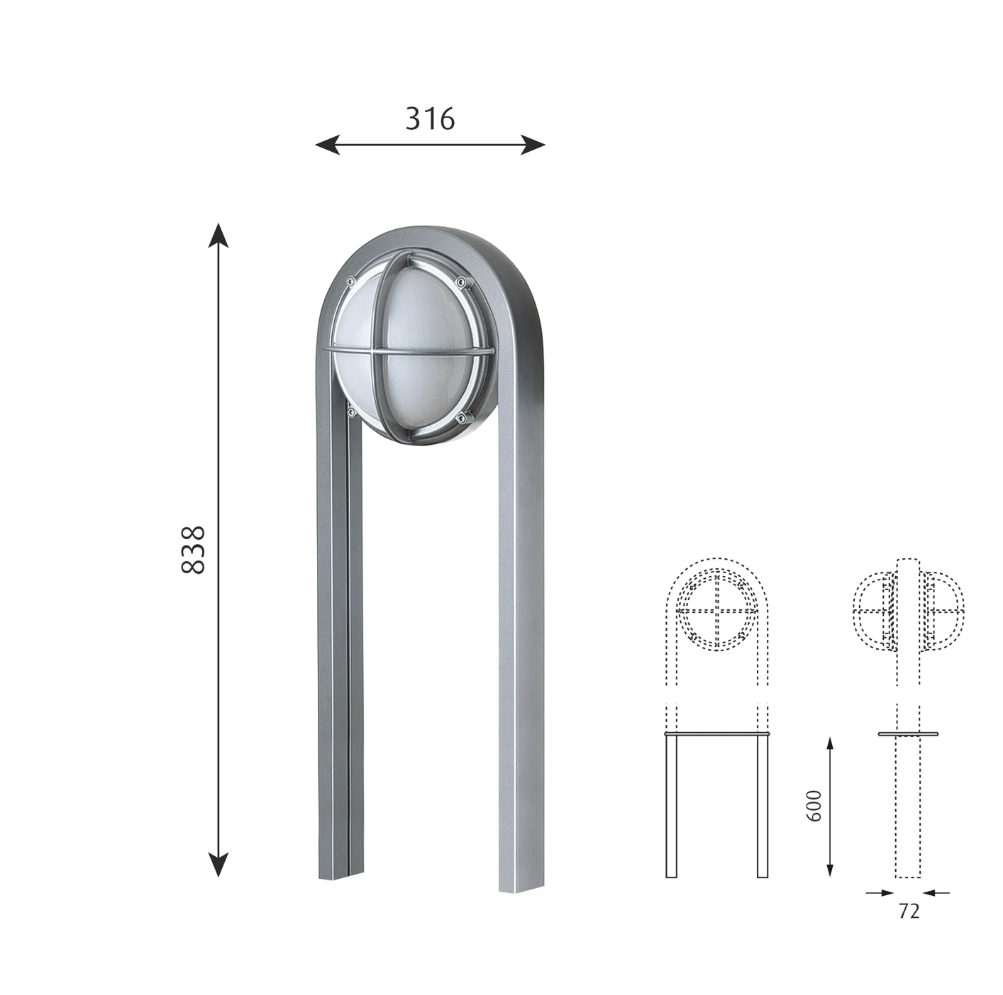

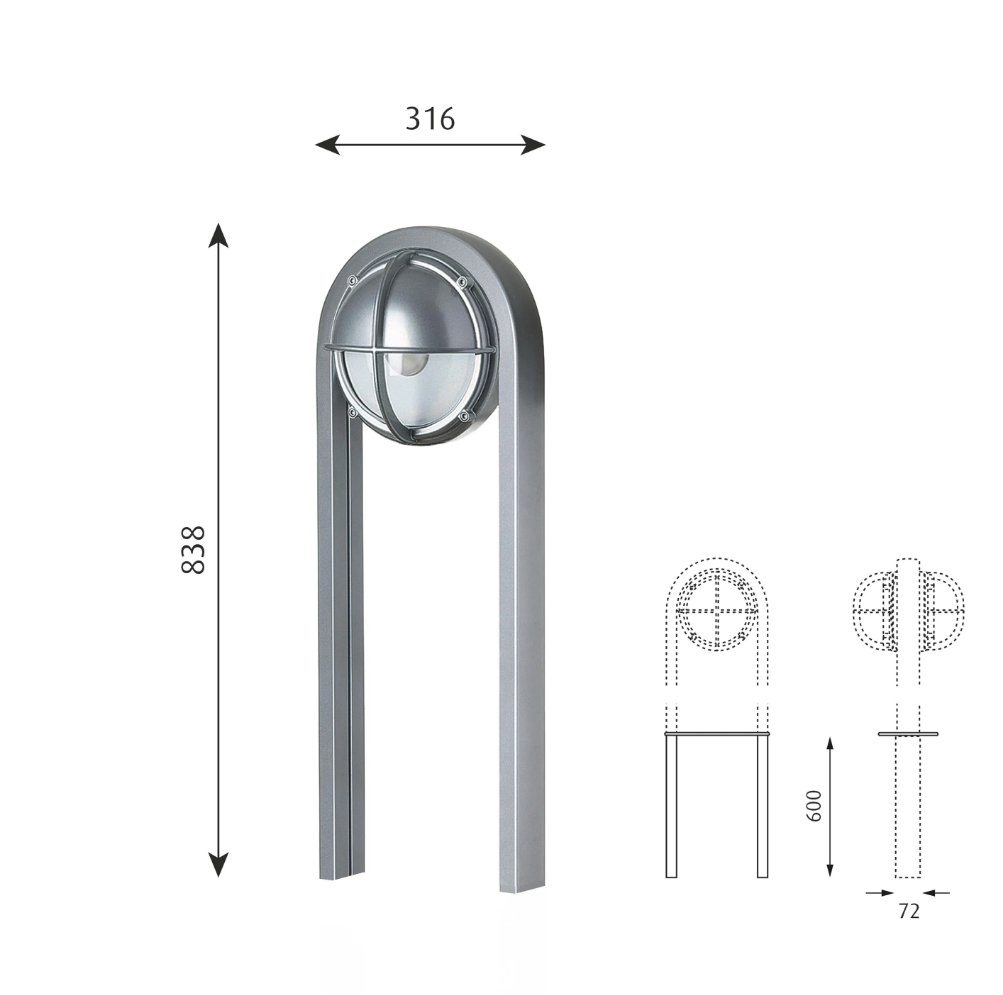

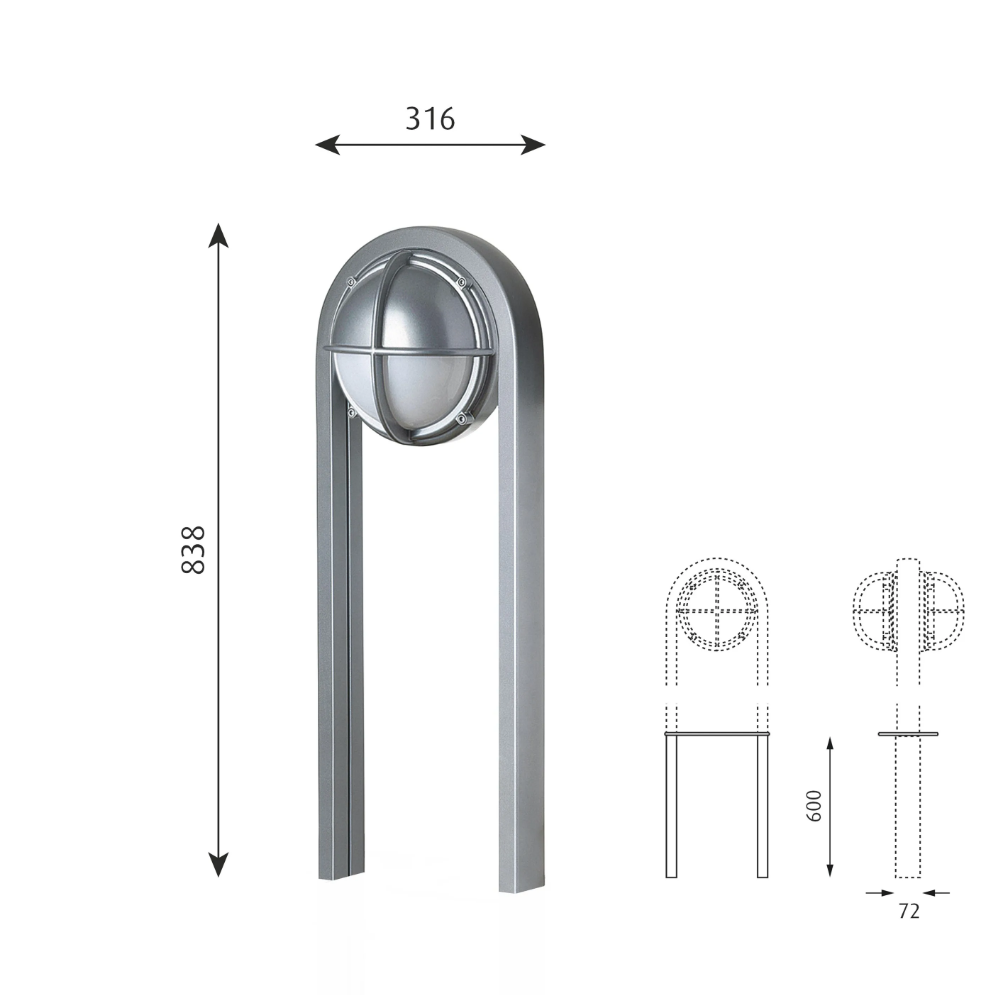

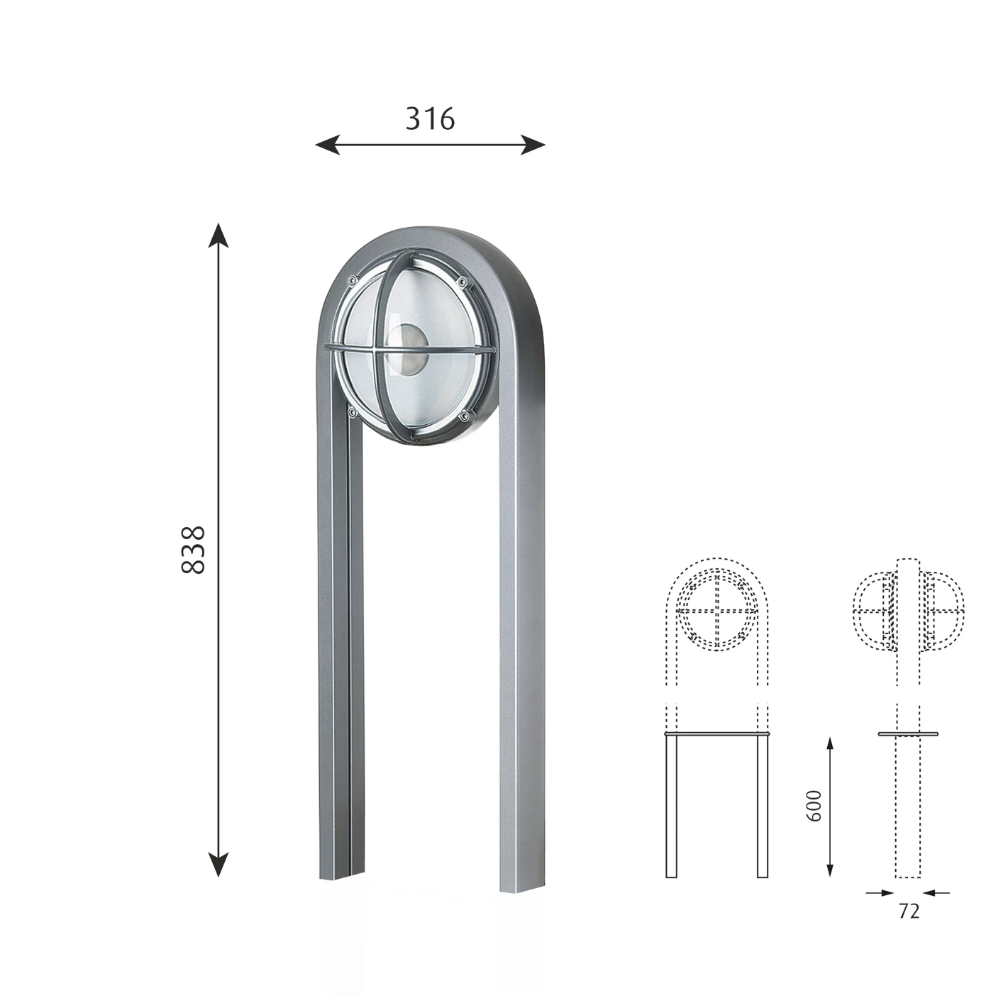

Overall dimensions
Information
With an opal screen the fixture emits soft comfortable and symmetric light. With a clear, half shaded screen the fixture emits non-glare symmetric light directed downwards. The half shade helps to channel the light.
Mounting
Terminal block positioning: In fixture head. Looping: Approved, max 4x2,5mm². Ballast positioning: In fixture head. Max. installation cable: 1 pcs. 4x2,5mm² or 2 pcs. 4x1,5mm². U-shaped post for in-ground installation: Height including fixture: 1438mm, including 600mm below ground. U-shaped post with base plate for surface mounting: Height including fixture: 838mm. With one fixture installed the depth is: 220mm, with 2 fixtures (dual installation): 331mm.
Specification notes
The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Finish
Aluminium coloured or graphite with textured surface, powder coated.
Light source & energy class
Energy class
Light source LED 3000K 8.5W
Materials
Injection moulded clear polycarbonate or injection moulded opal polycarbonate. Base/cross guard: Die cast aluminium. U-post: Extruded aluminium.
Class
Ingress protection IP66. Electric shock protection II w/o ground. IK10.
