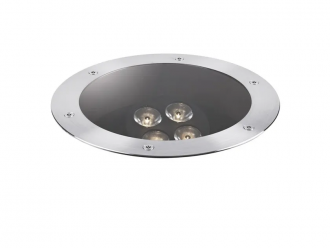

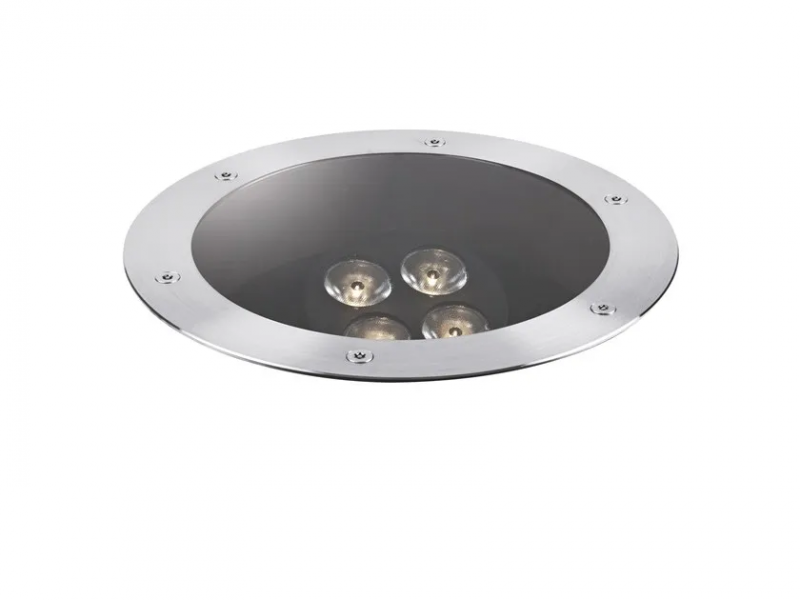

Radiis 210
ICB-70714
Прожектор
2020

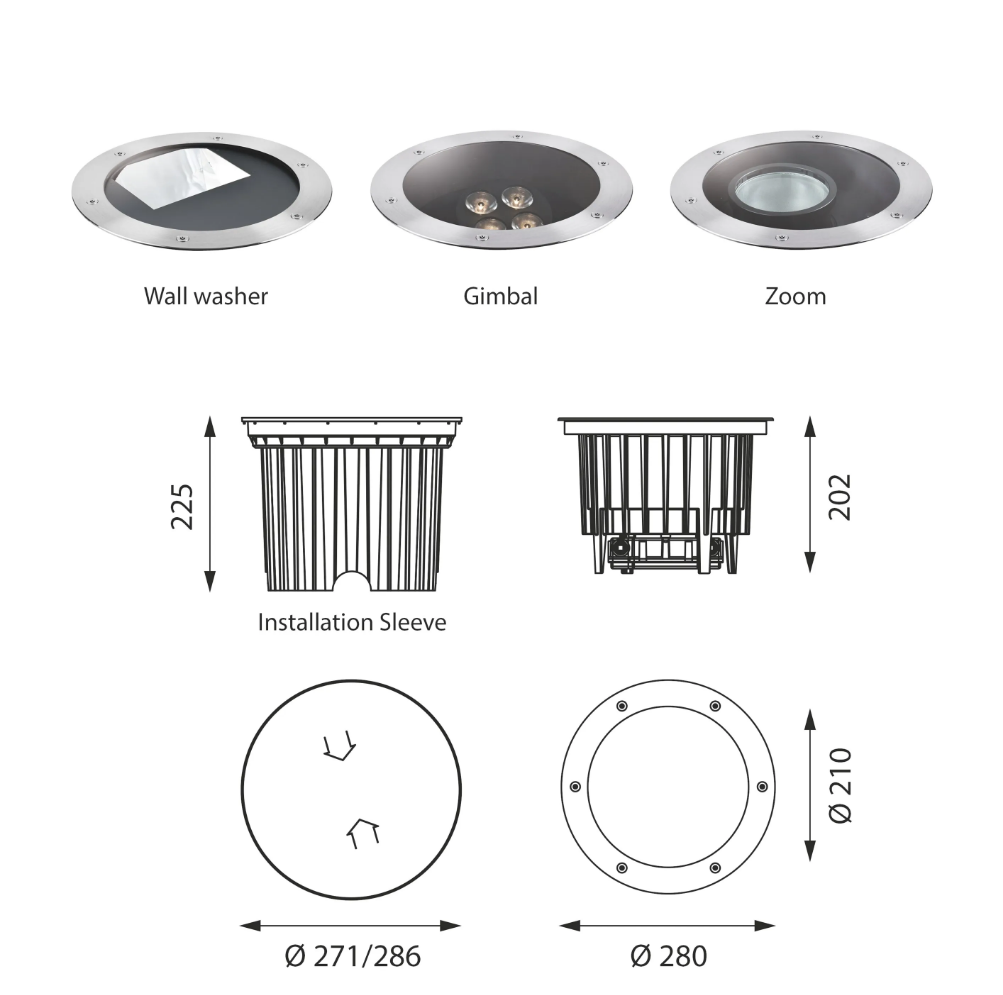

Width x Height x Length (mm); 280 x 2 x 280 Max 6.0 kg
Overall dimensions
Information
The fixture emits even, channelled light. Three types of light systems – zoom, lens and wall washer – together with direction adjustment options and colour and light filters, make it possible to illuminate buildings, vegetation, signs, etc. in an effective and interesting way, while promoting a sense of security.
Mounting
An installation sleeve must be used (ordered separately). The IP68 driver box/connection box is pre-mounted with sealed wiring and IP68 connectors. The connecting cable terminates with an IP68 connector (supplied) for cable type H07RN-F Ø7-12mm (2x2.5mm2). Looping: Yes. Certified to withstand load of up to 2,000 kg.
Light source & energy class
Energy class
Light source LED 3000K 37W
Finish
Glass, stainless steel.
Materials
Housing: Injection moulded anodised aluminium. Top ring: Brushed stainless steel, 316L. Glass: Extra clear, hardened glass. Driver box: Synthetic. Installation sleeve: Synthetic.
Class
Ingress protection IP66, IP67, IP69K. IK10. Electric shock protection II wo. ground.
Product not available in North America
