Ph 5/5

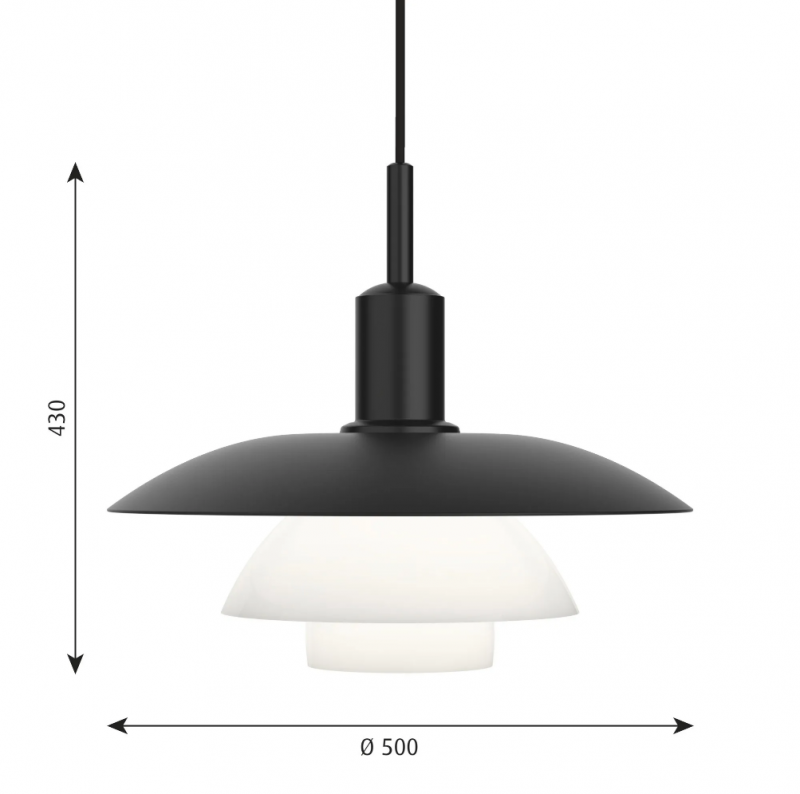

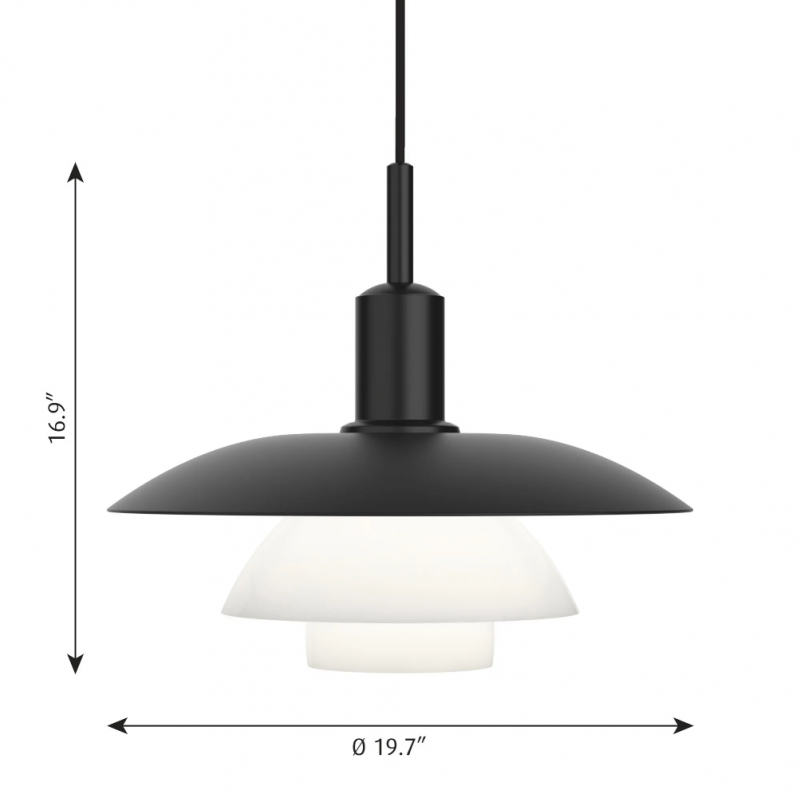

Overall dimensions
Information
The PH 5/5 fixture emits a diffused and comfortable glare-free light, characteristic of the reflective three-shade-system by Poul Henningsen. The fixture is available with white opal glass or soft touch black painted metal with a white inner side. Where the metal shades with the white painted inner sides reflect a fine and primarily downward directed light, the metal top shade combined with translucent opal glass middle and lower shades in three-layered mouth blow opal glass create a warm glow around the pendant too. The included diffuser in frosted glass is easy to insert for an even softer light distribution.
Light source
Light source LED 2700K 41W - Lumen: 1392
Materials
Shades: Mouth-blown white opal glass or spun aluminium. Bottom diffuser: Frosted glass. Suspension: Die casted zinc. LED version: Additional opal PC diffuser in front of LED. Canopy: Die casted zinc.
Finish
Shades: White opal glass or soft touch black painted with white inner side. Suspension: Matt black, powder coated. Canopy: Matt black, powder coated.
Mounting
Suspension type: Black textile cable 2x1,5mm². Cable length: 4m.Canopy: Yes. Specially designed matt black painted canopy for E27.LED variants: Cannot be height adjusted.Height adjustment of light source approx. 65mm depending on light source used.
Class
Ingress protection IP20. Electric shock protection II w/o ground.
