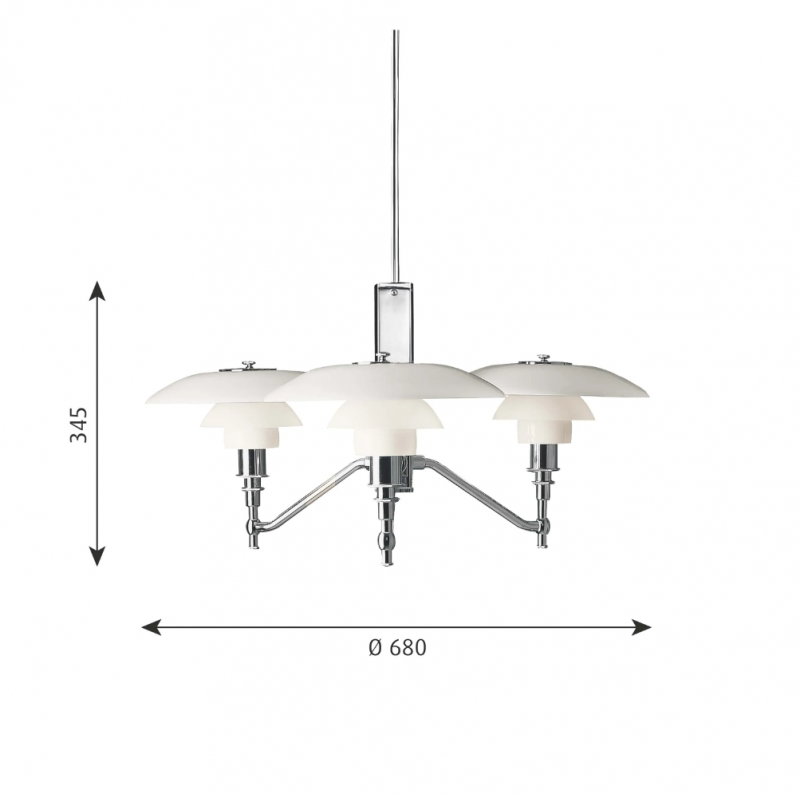

Overall dimensions
Information

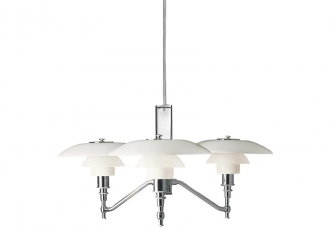

PH 3/2 Academy is a LED aluminium chandelier.
Mounting
Suspension type: Cable 2x0,75mm². Canopy: Yes. Cable length: 4m.
Finish
High lustre chrome plated. White opal glass.
Materials
Shades: Mouth-blown white opal glass. Frame: High lustre chrome plated, extruded brass. Suspension: High lustre chrome plated, extruded brass.
Sizes and weights
Width x Height x Length (mm) | 680 x 345 x 680 Max 6.4 kg
Class
Ingress protection IP20. Electric shock protection II w/o ground.
The three lights on the fixture are designed based on the principle of a reflective threeshade system which directs the majority of the light downwards. The shades are made of mouth-blown opal three-layer glass, which is glossy on the top and sandblasted matt on the inside, giving a soft and diffused light distribution.
