Ph
ICB-85675
Настенный/потолочный светильник
2020
Width x Height x Length (mm); 450 x 290 x 680 Max 6.8 kg

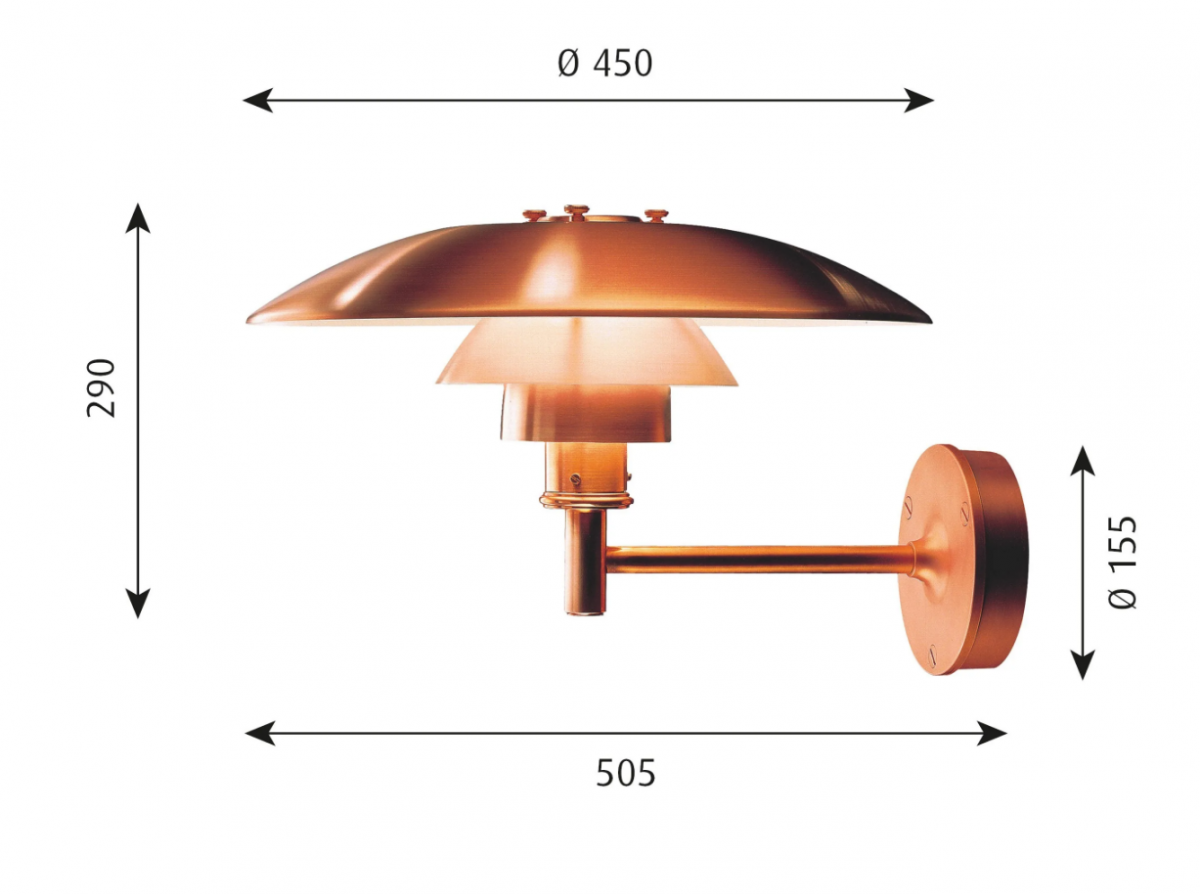

Overall dimensions
Information
The fixture is designed based on the principle of a reflective three-shade system, which directs the light downwards. The shades have a matt white painted inside to ensure diffuse, comfortable light distribution.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x bottom + 2x rear entries for Ø 10-14.5mm cable or 2x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
Specification notes
The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Finish
Copper, brushed.
Light source & energy class
Energy class A+ - E
Light source 1x100W E27
Materials
Shades: Spun copper. Wall box: Copperplated, spun brass. Arm: Copperplated, brass.
Class
Ingress protection IP23. Electric shock protection I w. ground.
