Nyhavn
ICB-85683
Настенный/потолочный светильник
2020

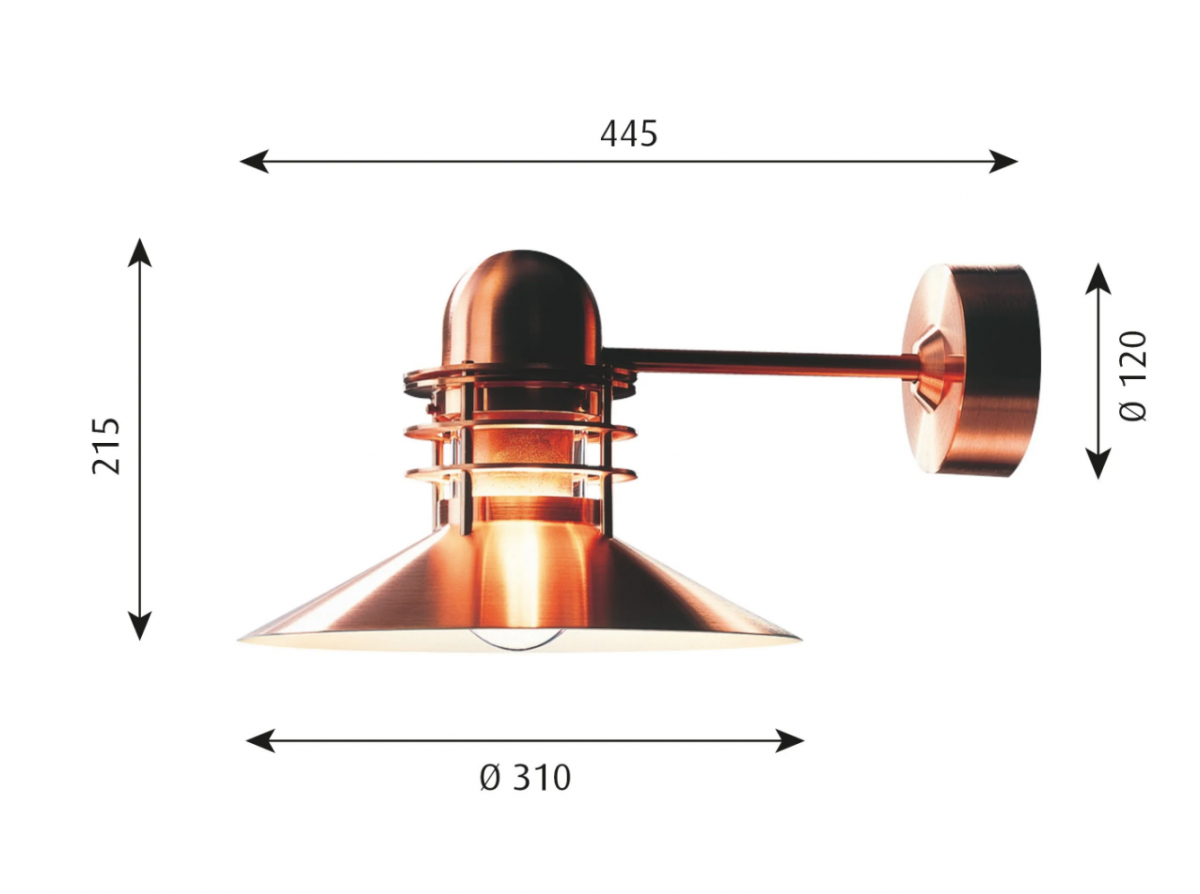

Width x Height x Length (mm); 310 x 225 x 445 Max 4.1 kg
Overall dimensions
Information
The conical shade ensures comfortable light that is directed downwards in a wide beam. The shade interior has a white matt painted surface, ensuring uniform light distribution. The rings ensure that a stray light is controlled, and direct a small amount of light onto the top side of the shade for self-illumination.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x bottom + 3x rear entries for Ø 10-14.5mm cable. Looping: Approved, max. 3x1,5mm².
Specification notes
The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Finish
Copper, brushed or white, wet painted.
Light source & energy class
Energy class A+ - E
Light source 1x100W E27
Materials
Shades: Spun aluminium or spun copper. Enclosure: Clear glass. Top: Spun aluminium or spun copper. Wall box: Die cast aluminium. Wall box cover: Spun aluminium or spun copper. Arm: Copperplated, red brass or steel.
Class
Ingress protection IP44. Electric shock protection I w. ground.
