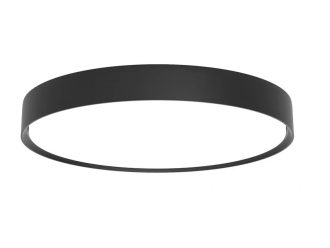

Lp slim round
ICB-106948
Потолочный светильник
Width x Height x Length (mm); ; 248 x 11 x 248 Max 1.9 kg; ; 438 x 11 x 438 Max 4.3 kg; ; 679 x 11 x 679 Max 9.8 kg

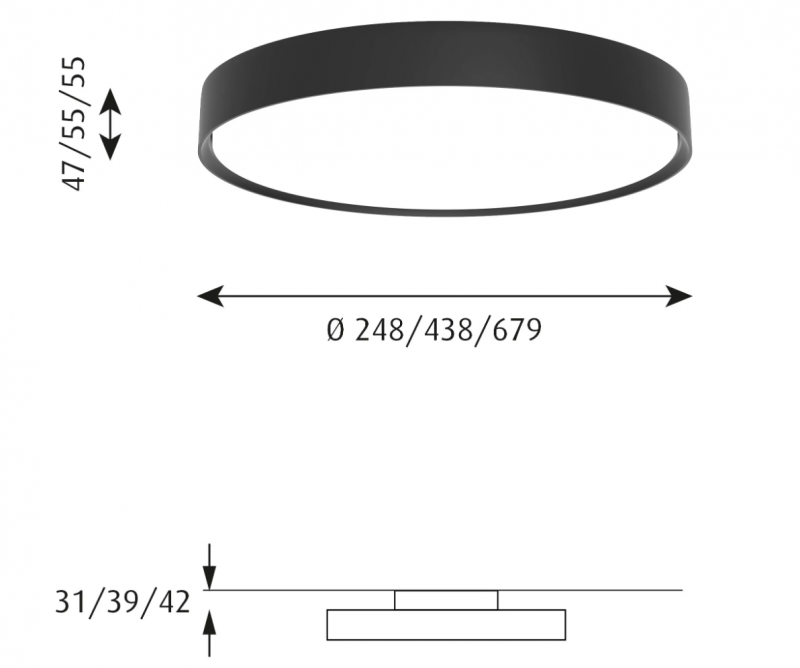

Overall dimensions
Information
The slim housing encircles and high-efficient acrylic diffuser emitting diffused primarily downward directed light. The slim body has a slight curvature and an inner curve which reduces contrast. The product family comes in a range of sizes and mounting options for a wide range of applications. Surface mounted and suspended versions have an indirect light component.
Finish
White, aluminium grey or black, powder coated.
Materials
Reflector: Die cast aluminium. Diffuser: Acrylic, opal. Installation lock: Aluminium.
Mounting
Directly on ceiling. Looping: Approved, max 5x1.5mm2. Cable entries: Rear, Side-mounted. Driver integrated.
Light source & energy class
Energy class
Light source LED 3000K 13W
Class
Ingress protection IP20. Electric shock protection I.
