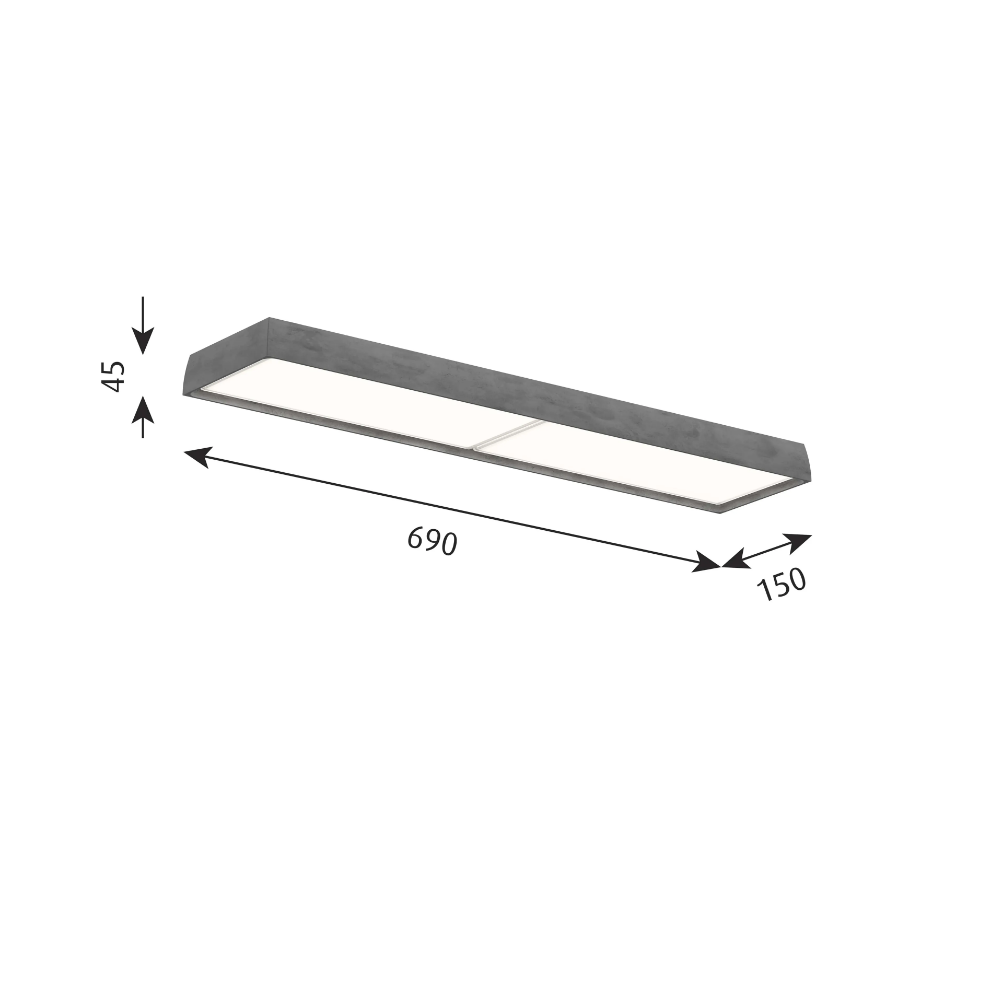

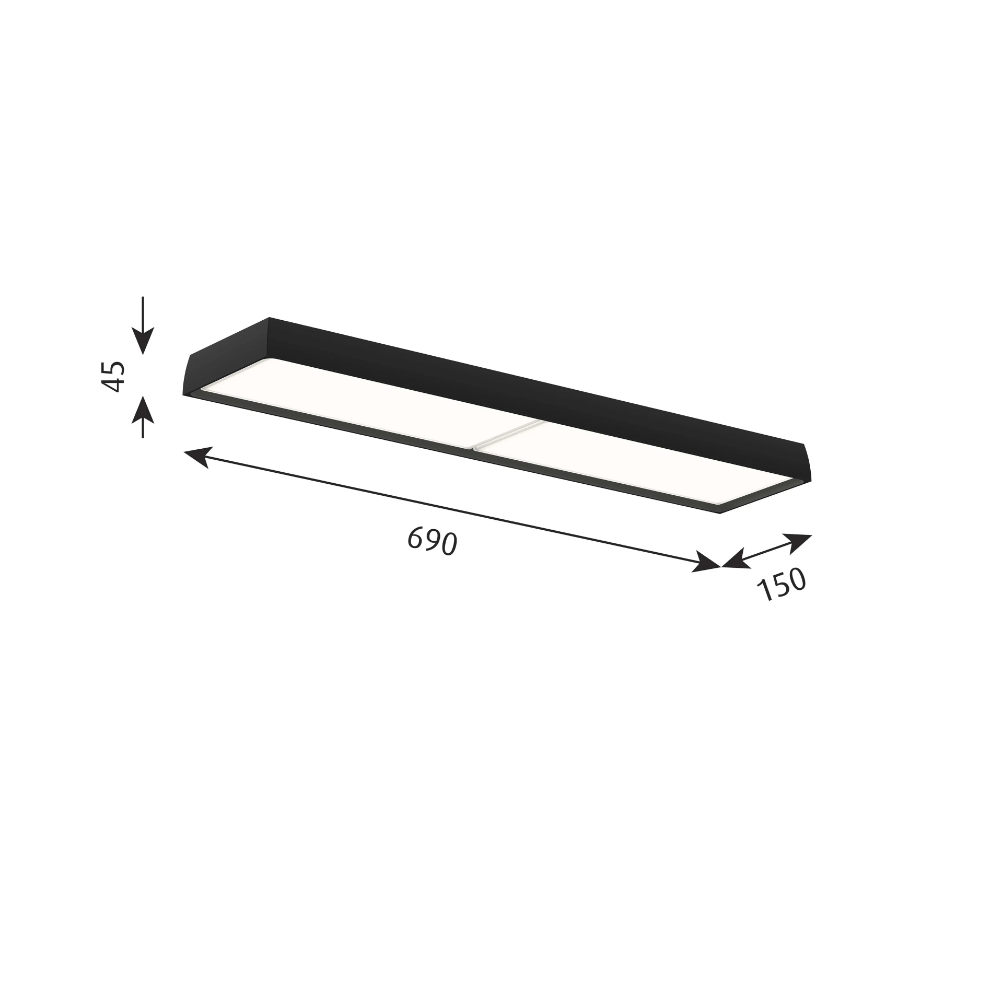

Overall dimensions
Information
LB Slim Box is a LED die cast aluminium ceiling/wall lamp.
Mounting
Ceiling thickness: 1–40 mm. Cutout dimensions: 522 x 101 mm. Maximum cutout dimension: 630 x 110 mm. Builtin height: minimum 80 mm. Optional mounting bracket or wire for alternative installation. Looping: Approved, max. 5 x 1.5 mm². Integrated driver.
Finish
White or black, powder coated or clear lacquered, pickled aluminium.
Materials
Frame/Housing: Die cast Aluminium, Light Engine bottom: Acrylic (Opal or clear). Light Engine top: Acrylic opal.
(Pendant version: Top diffuser in Acrylic
Canopy Cover in ABS)
Class
Ingress protection IP20. Electric shock protection I.
Light source
LED 3000K 25W
Lumen: 2288
The product family shares a high-efficiency light unit framed in a rectangular housing. The recessed variants emit downwardly directed light, while the suspended and surface-mounted variants provide a combination of primarily downwardly directed and indirect light. Choosing between opal diffusers or micro-prismatic solutions, the glare and visual expression can be balanced as desired. The light egress emphasizes the design detail in the housing, ensuring a comfortable and subtle yet distinct design.
