Lp grand
ICB-106943
Потолочный светильник

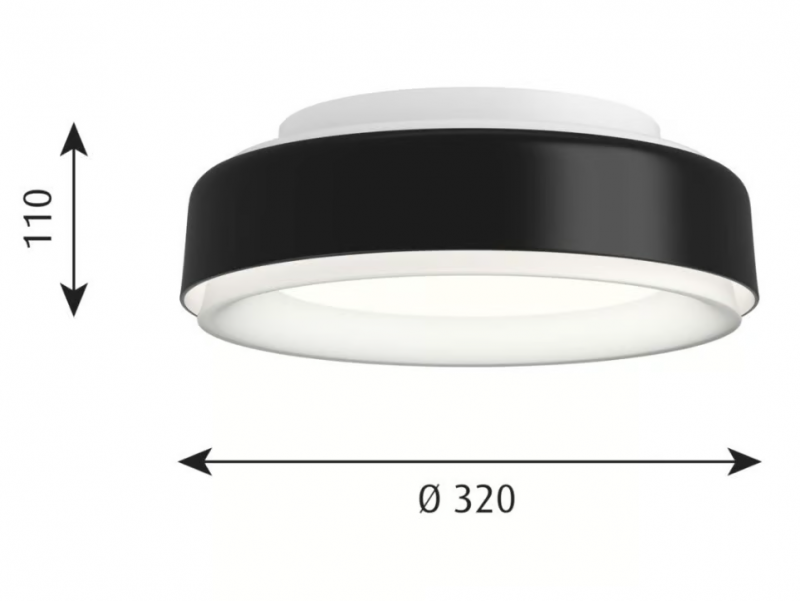

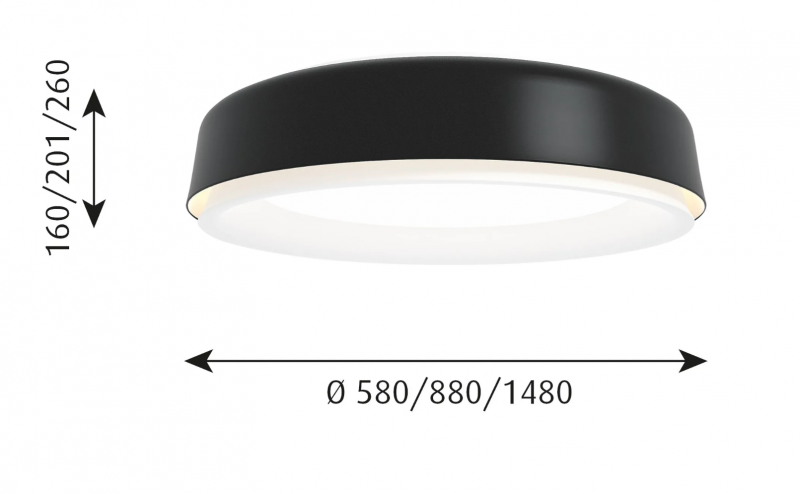

Width x Height x Length (mm); 320 x 90 x 320 mm - Max 0.0 kg; 580 x 160 x 580 mm - Max 5.7 kg; 880 x 200 x 880 mm - Max 15.5 kg; 1480 x 313 x 1480 mm - Max 45.6 kg
Overall dimensions
Information

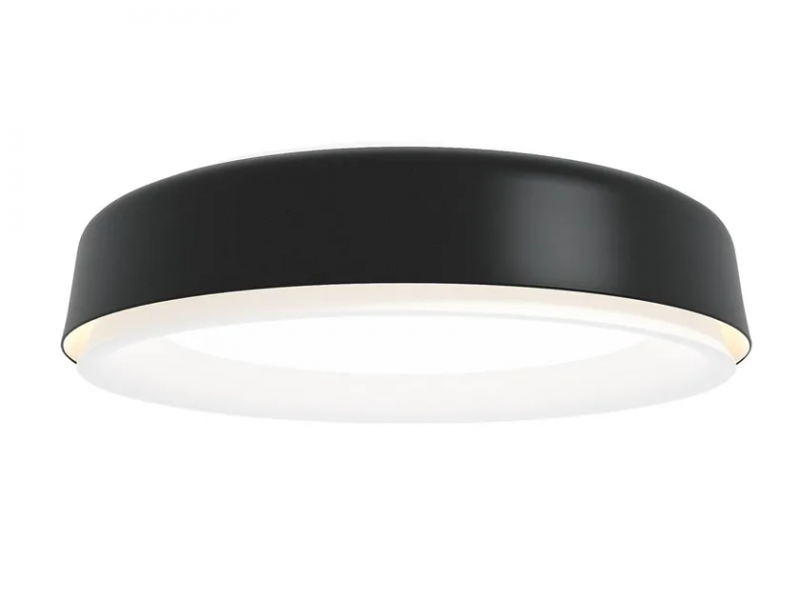

The slim housing encircles and high-efficient acrylic diffuser emitting diffused primarily downward directed light. The slim body has a slight curvature and an inner curve which reduces contrast. The product family comes in a range of sizes and mounting options for a wide range of applications. Surface mounted and suspended versions have an indirect light component.
Finish
White, aluminium grey or black, powder coated.
Materials
Ø320: Top reflector: ABS. Bottom reflector: ABS. Outer shade: ABS. Diffusor: PMMA. Housing: Die-cast Aluminum.
Ø580: Top reflector: ABS. Bottom reflector: PE. Outer shade: ABS. Diffusor: PMMA. Housing: ABS.
Ø880: Top reflector: PE. Bottom reflector: PE. Outer shade: ABS. Diffusor: PMMA. Housing: ABS.
Ø1480: Top reflector: PE. Bottom reflector: PE. Outer shade: PUR. Diffusor: PMMA. Housing: ABS.
Mounting
Ø320: Cable entries: Rear or side-entry. Driver integrated into ceiling/wall box. Looping: Max. 5 x 2.5 mm².
Ø580/Ø880/Ø1480: Ceiling bracket: Yes. Loose cable with plug for primary side of installation included in pack. Looping: No.
Light source
Light source LED 3000K 59W - Lumen: 5159
Class
Ingress protection IP20. Electric shock protection I w/ground.
