Lp grand
ICB-106942
Подвесной светильник

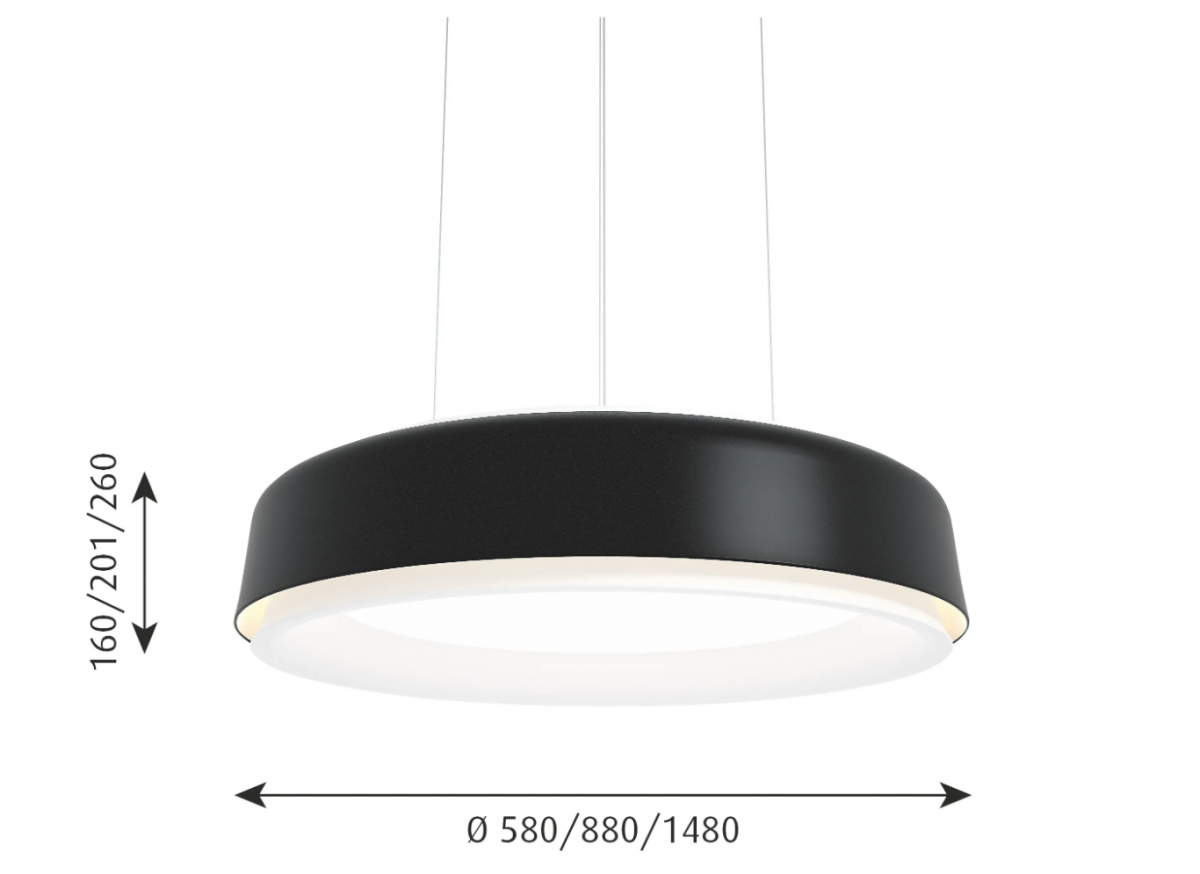

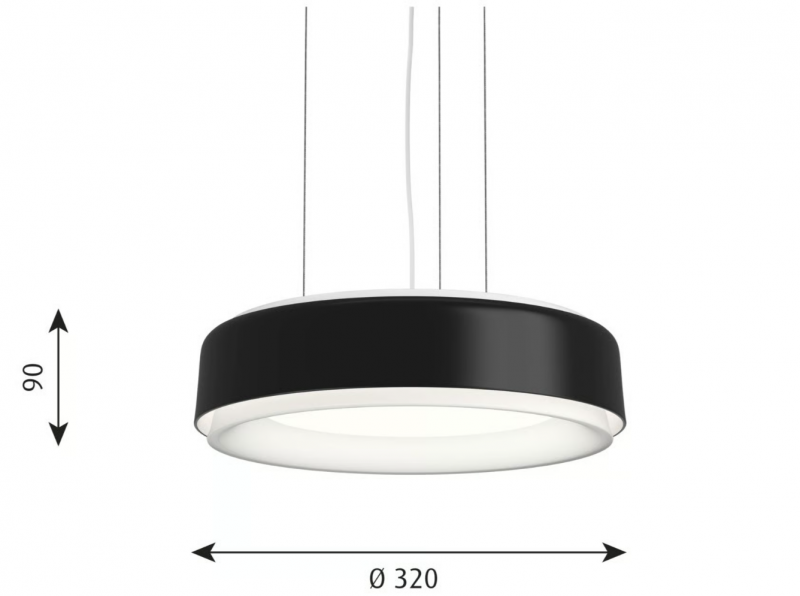

Width x Height x Length (mm); 320 x 90 x 320 mm - Max 0,0 kg; 580 x 160 x 580 mm - Max 6.3 kg; 880 x 200 x 880 mm - Max 16.6 kg; 1480 x 260 x 1480 mm - Max 45.0 kg
Overall dimensions
Information

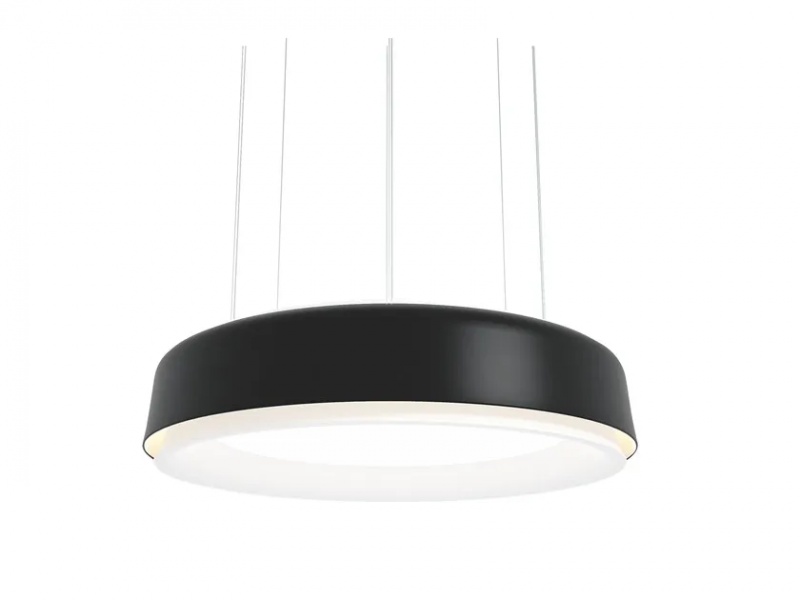

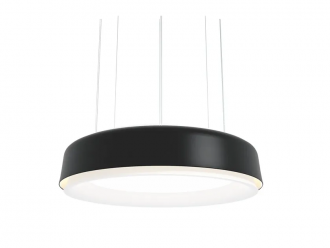

The circular luminaire is perceived as a set of coinciding rings based around a centrally positioned horizontal diffuser. A large angled reflector circumferences the diffuser and reduces the contrast around the edge. A revolved top reflector is perfectly curved to distribute uplight in a wide angle. A coloured outer shade surrounds the reflector and creates an interreflection of light resulting in a graceful glow of light on the outside of the top and bottom reflector. In total, it creates four rings of light surrounding the central diffuser.
Finish
Reflector: Matt-white satin finish. Outer shade (outside): Matt (black and champagne) or gloss (white). Wet-painted surface. Diffuser: Glossy.
Materials
Ø320: Top reflector: ABS. Bottom reflector: ABS. Outer shade: ABS. Diffusor: PMMA. Housing: Die-cast Aluminum. Ø580: Top reflector: ABS. Bottom reflector: PE. Outer shade: ABS. Diffusor: PMMA. Housing: ABS.
Ø880: Top reflector: PE. Bottom reflector: PE. Outer shade: ABS. Diffusor: PMMA. Housing: ABS.
Ø1480: Top reflector: PE. Bottom reflector: PE. Outer shade: PUR. Diffusor: PMMA. Housing: ABS.
Mounting
Ø320: Suspension type: Cord 2 x 0.75 mm² with cord & 3 wires. Canopy: Yes. Driver integrated into canopy. Cord length: 4 m. Looping: Max. 5 x 2,5 mm².
Ø580/Ø880: Suspension type: Cable 5x0,75mm² with cable & wire. 1x5x0,75mm² with cable & 3 wires. Canopy cover: Yes. Cable & Wire length: 4 m. Looping: No.
Ø1480: Suspension type: Cable 5x0,75mm² with cable & wire. 2x5x0,75mm² with cable & 4 wires. Canopy cover: No. Cable & Wire length: 4 m. Looping: No.
Light source
Light source LED 3000K 59W - Lumen: 5225
Class
Ingress protection IP20. Electric shock protection I w/ground.
