Lp circle
ICB-117076
Потолочный светильник
Width x Height x Length (mm); ; 267 x 137 x 267 Max 2.2 kg; ; 458 x 115 x 458 Max 3.5 kg; ; 456 x 156 x 456 Max 3.9 kg

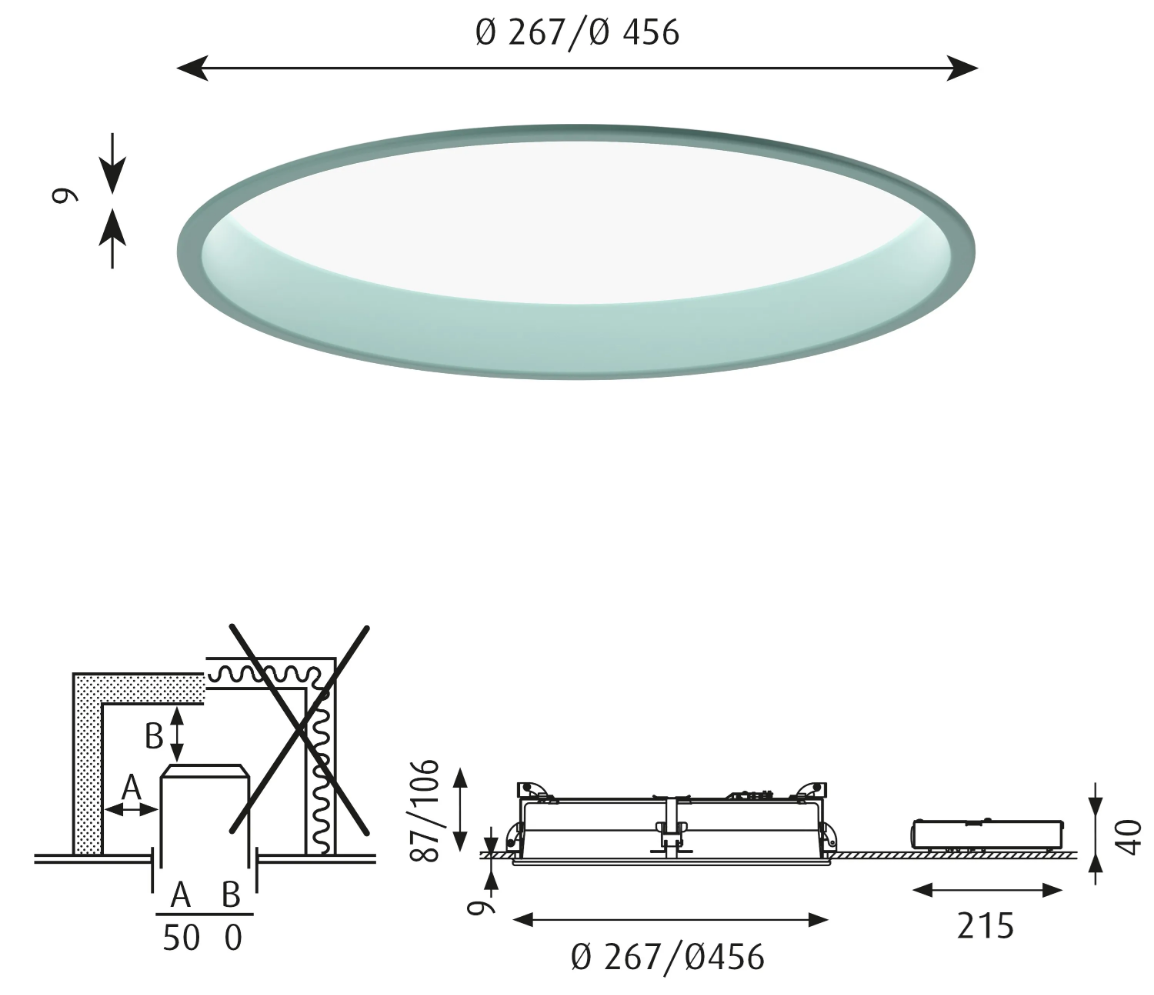

Overall dimensions
Information

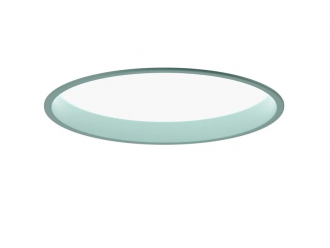

The fixture emits diffuse light via a high-efficiency acrylic diffuser. The diffuser, which is encircled by a voluminous coloured or white ring, is hidden when viewed from low angles. Angling the inner side of the ring 5° creates a comfortable and decorative graduation of the light from the diffuser. With two diameters and four different installation options, the lights series can be used for a wide range of applications.
Finish
White, Black, Pale Petroleum or Yellow. Powder coated.
Materials
Reflector: Deep drawn aluminium. Diffuser: Acrylic, frosted. Installation lock: Polyamide.
Mounting
Ceiling thickness: 1–40 mm. Driver is a separate unit (supplied with luminaire). Cut-out dimensions: Ø 260: Ø 248mm, Ø 450: Ø 438mm. Looping: Approved, max 5x1.5mm2.
Class
Ingress protection IP20. Electric shock protection I.
Light source & energy class
Energy class
Light source LED 3000K 13W
Specification notes
A separate LED driver is supplied with the fixture. All LED power measurements are measured as system power.
