Flindt
ICB-49734
Настенный светильник
2020

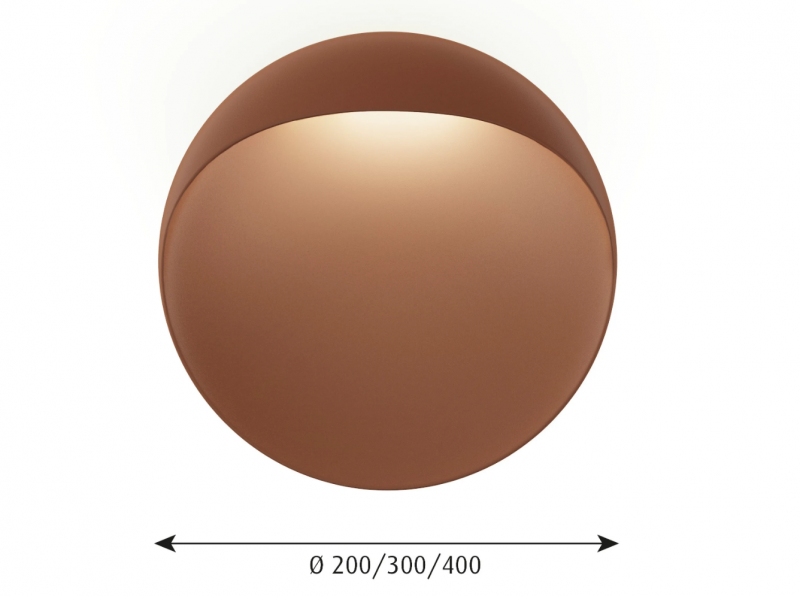

Width x Height x Length (mm); ; 60 x 200 x 200 Max 0.9 kg; ; 80 x 300 x 300 Max 3.8 kg; ; 100 x 400 x 400 Max 6.7 kg
Overall dimensions
Information
The fixture emits an asymmetrical non glary, downward directed light distribution. Softly illuminating its cut-out shape while providing an efficient horisontal illumination on the ground or floor. Perfectly fit for indoor as well as outdoor applications.
Finish
Aluminum coloured, white or corten coloured. Textured surface, powder coated.
Materials
Front and back housing: Die casted. Light Engine: Die casted aluminum and injection molded acrylic.
Mounting
Ø200 : Installation cable 3x1.5mm2 . Looping not possible - Integrated driver. Ø300/400: Installation cable- 3x1.5mm2 + 2x1.5mm2 (Dimming). Looping possible. Integrated driver.
Class
Ingress protection IP65. Electric shock protection I w. ground. Ø200: IK08. Ø300/400: IK09.
Light source & energy class
Energy class A++ - A
Light source LED 2700K 10W
