Albertslund
ICB-85690
Настенный/потолочный светильник
2020
Width x Height x Length (mm); 515 x 220 x 270 Max 3.3 kg
Overall dimensions
Information

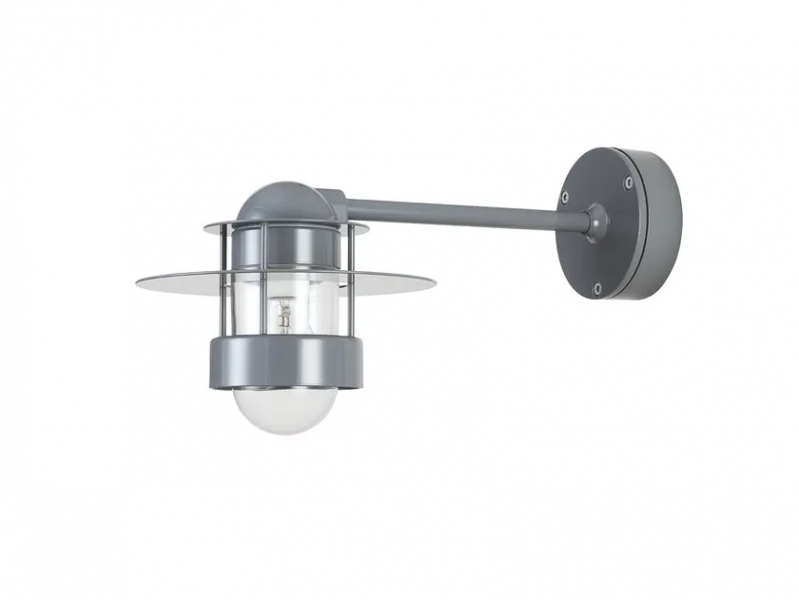

The fixture provides characteristic symmetrical and functional lighting. The horizontal ring reflects the light downwards, but its position also allows some light to slip past and illuminate the fixture itself. The anti-glare ring prevents from horizontal glare, and the diffuser is available either as clear or partly frosted glass, depending on the desired light source.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x rear entries for cable Ø 10-14.5mm and 2x bottom knockouts Ø 15mm. Looping: Approved, max. 3x1,5mm². Ballast positioning: In wall box.
Specification notes
TC-TEL version is supplied with partly frosted glass enclosure to avoid undesireable glare. Incandescent version is supplied with clear glass enclosure. The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Finish
Galvanized, grey or white, powder coated.
Light source & energy class
Energy class A+ - E
Light source 1x100W E27
Materials
Enclosure: Clear glass or partly frosted glass. Saturn ring: Punched aluminium or galvanized, punched steel. Anti glare ring: Spun aluminium or galvanized, extruded steel. Housing: Die cast aluminium. Wall box: Die cast aluminium. Arm: Extruded aluminium.
Class
Ingress protection IP44. Electric shock protection I w. ground. IK06.
