Information

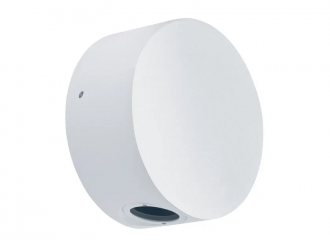

Wall mounted for outdoor applications
surface mounted (wall)
body in anodized aluminium, screen in tempered glass
finishes: anodized aluminium, cor-ten
2 power LEDs
max 4W - max 500mA
includes 0,50 m PVC cable, 0,30 m FROR 2x0,35 Ø3,5 mm
series connection
delivered lumen output: 103 lm (3000K, 500mA) per beam
optics: 10°, 20°, 40°
LED colour: white - 2700K, 3000K, 4000K
blue
ingress protection: IP65
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow wire test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,42 kg
dimensions Ø80x35 mm
dimming using a dimmable power supply unit.
