Information

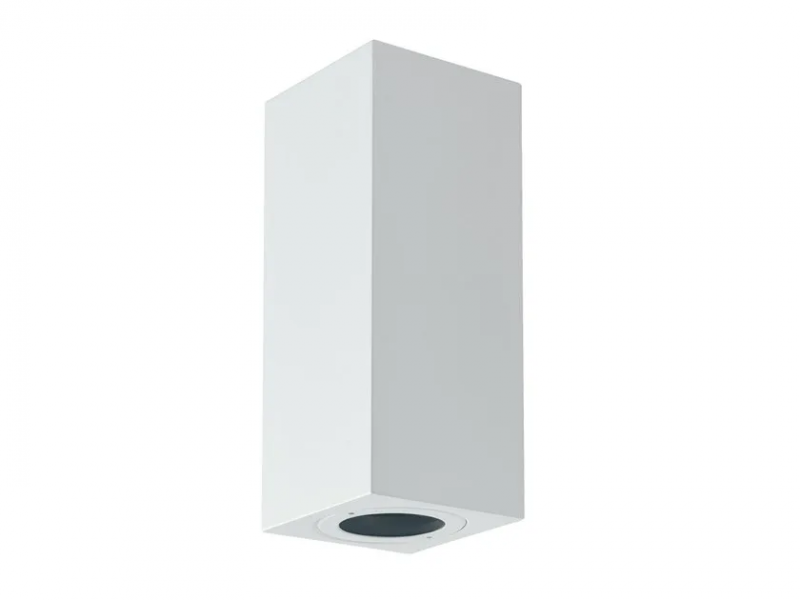

Wall mounted for outdoor applications, double beam
surface mounted (wall)
body in anodized aluminium, screen in tempered glass
finishes: anodized aluminium, cor-ten
6 (3+3) power LEDs
max 6W - max 350mA
includes 0,50 m PVC cable, 0,30 m FROR 2x0,35 Ø3,5 mm
series connection
delivered lumen output: 364 lm (3000K, 350mA) per beam
optics: 15°, 22°, 54°
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
RGB
ingress protection: IP65
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow wire test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 0,70 kg
dimensions 49x49x130 mm
dimming using a dimmable power supply unit
accessories: anodized aluminium spacer WD0100, cor-ten spacer WD0102
