Information

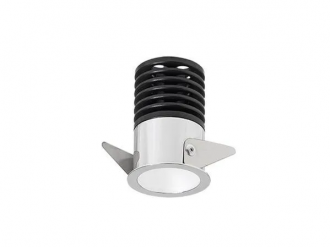

Recessed downlight for indoor applications
recessed (ceiling)
body in anodized anticorodal aluminium lega EN AW 6060, trim in sheet metal, screen in plexiglass
finishes: white, chrome
1 multichip power LED
6W - 230Vac
5W - 24Vdc
power supply unit: included and wired (230Vac), ot included (24Vdc)
includes 0,30 m cable (230Vac), includes 2x0,50 m single-core cables (24Vdc)
total delivered lumens: 310 lm (3000K)
diffuse optics
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP40, IP44 installed
operating temperature: 0°C +45°C
screen temperature: max 40°C (Ta 25°C)
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: II (230Vac), III (24Vdc)
weight 0,15 kg
dimensions Ø44x73 mm
cut-out size Ø40 mm
dimming using a dimmable power supply unit
accessories: outer casing for solid walls WC3108
