Information

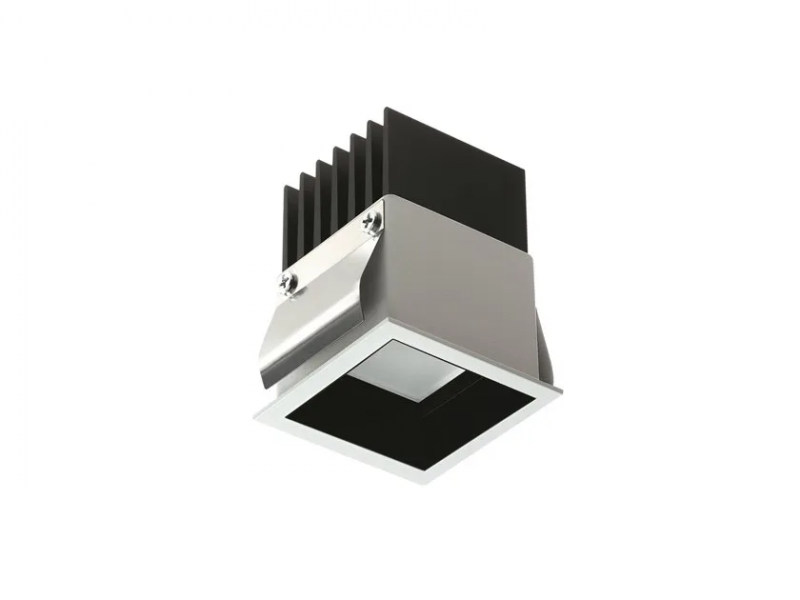

Recessed downlight for indoor applications
recessed (ceiling)
5,5W, 11W
230Vac
Lumen output at source: 644 lm (3000K, 5,5W), 1251 lm (3000K, 11W)
Delivered lumen output: 303 lm (3000K, 5,5W), 631 lm (3000K, 11W)
1 power LED, 4 power LEDs
LED colour: 2700K, 3000K, 4000K
Optics: diffuse
body in black anodized aluminium, trim in steel, screen in one-side-frosted polycarbonate
Finishes: white, black, grey
power supply unit included
includes 0,30 m cable
Control system: DALI, 1-10V + PUSH, on / off, Mains dimming
Ingress protection: IP40
Ingress protection mounted: IP44
version with LED colour RGB available on request
Operating temperature: 0°C — +45°C
Maximum device temperature: 40°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: II
Weight: 370 g
Dimensions: 61x61x78 mm
Cutout dimensions: 56x56 mm
Volume of thermal heatsink: 140x140x130 mm
Accessories: WC3101 Outer casing for solid walls
Energy efficiency class: A / A+ / A++
