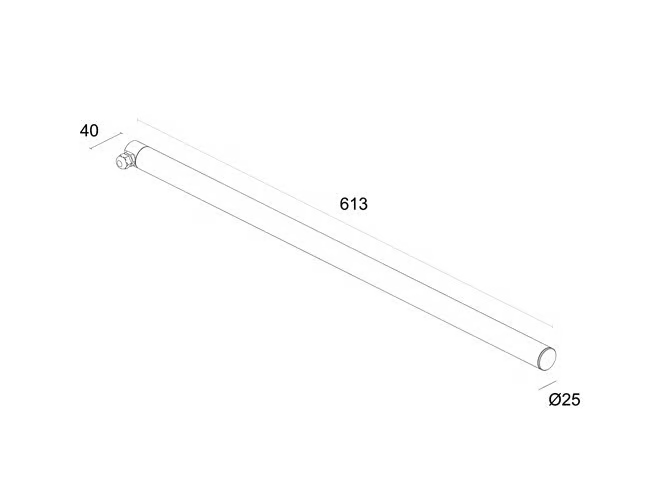

Overall dimensions
Information
Linear profile for outdoor and underwater applications
surface mounted (ceiling, wall, floor)
Power: optics version: 7W, diffuse version: 10W, RGB version: 11W
Power supply: 24Vdc
Lumen output at source: 619 lm (3000K, optics version), 1092 lm (3000K, diffuse version), RGB: 526 lm, R: 118 lm G: 336 lm B: 72 lm (diffuse version)
Delivered lumen output: 504 lm (3000K, 40°), 548 lm (3000K, diffuse version), RGB: 376 lm, R: 84 lm G: 240 lm B: 52 lm (diffuse version)
optics version: 6 power LEDs pitch 100, diffuse version: 78 mid power LEDs, RGB version: 42 low power LED full color
LED colour: 2700K, 3000K, 4000K, RGB
Optics: 40°, 65°, 20°x50°, diffuse
Body material: end caps in AISI 316L stainless steel
Screen material: diffuser in opal polycarbonate, installed flush with the surface, screen in transparent polycarbonate
Ingress protection: IP68
Impact resistance: IK10
available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions
Protection systems: IPS
Appliance class: III
Weight: 400 g
Dimensions: Ø25x613 mm
