Information

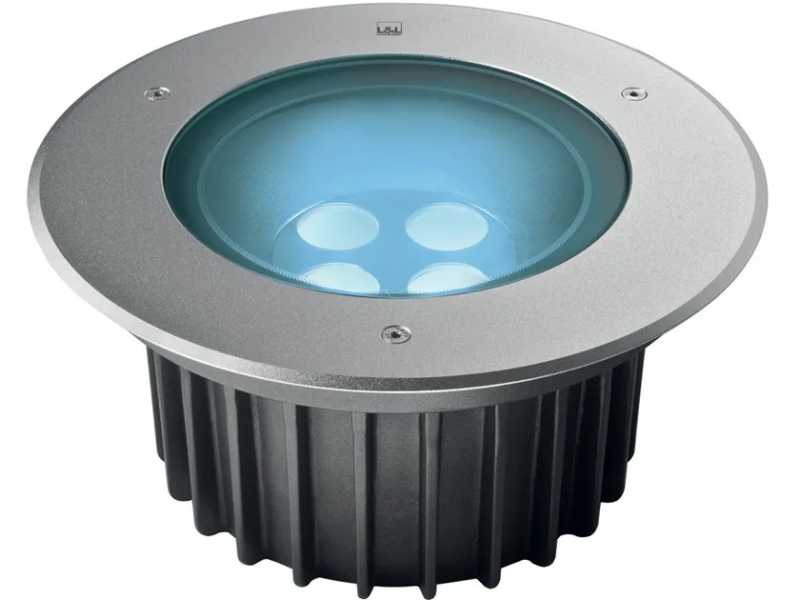

Recessed uplight for outdoor applications (not suitable for use in swimming pools or fountains)
recessed (floor)
Power: 39W
Power supply: 24Vdc
Lumen output at source: 2048 lm, R: 352 lm G: 640 lm B: 208 lm W: 848 lm (4000K)
Delivered lumen output: 1216 lm, R: 209 lm G: 380 lm B: 123 lm W: 504 lm (4000K, 33°)
4 RGBW power LED groups, 50000h L85 B10 (Ta 25°C)
LED colour: RGBW
Optics: 24°, 33°, 60°, 32°x61°, adjustable 66°x11°, wall washer
Material: body in die-cast aluminium, trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass
Finishes: micro-blasted stainless steel
power supply unit not included
includes 1.5 m FEP+RUB cable (equivalent to H05RN-F) 6x0.50/0.50 Ø6.3 mm
Impact resistance: IK10
ingress protection: IP67 (with purpose-built outer casing), IP68 (with purpose-built outer casing), IP69K. 66°x11° optics adjustable through 360º using the magnet provided
Protection systems: IPS, PID
Operating temperature: -20°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Glow wire test: 960°
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: III
Weight: 5000 g
Dimensions: Ø290x138 mm.
