Information

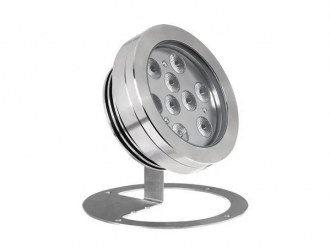

Projector for outdoor and underwater applications
surface mounted (ceiling, wall, ground), max depth 10 m
body and trim in AISI 316L stainless steel, screen in tempered glass
6. 9 power LEDs, RGB: 9 power LEDs
12W (6 power LEDs x 2W), 18W (9 power LEDs x 2W) - 24Vdc, RGB: max 18W (9 power LEDs x 2W)
includes 5 m neoprene cable H05RN-F 2x0,75/0,75 Ø6,3 mm, RGB: includes 5 m FEP+PCP cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
LED colour - white: parallel connection, RGB: series connection
total delivered lumens: 596 lm (3000K, 6 power LEDs), 893 lm (3000K, 9 power LEDs)
optics: 10°, 20°, 40°
LED colour: white - 2700K, 3000K, 4000K, 5000K
blue
RGB
ingress protection: IP68
impact resistance: IK09
equipped with IPS
operating temperature: -10°C +45°C
screen temperature: max 30°C (Ta 25°C)
Glow wire test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: III
weight 3,05 kg
dimensions Ø124x57mm, h 135 mm
dimming using a 24Vdc dimmer
