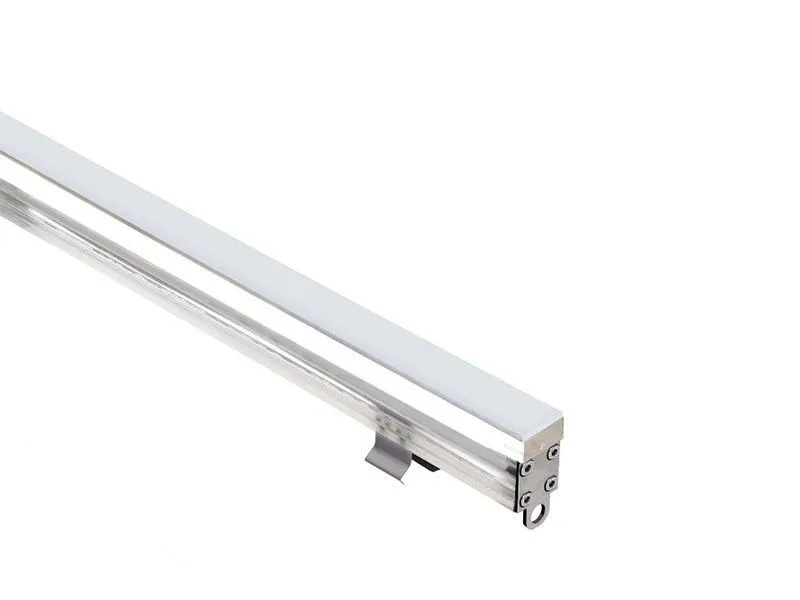

Linear profile for outdoor applications, drive-over up to 5000 kg recessed (ceiling, wall, ground) body in stainless steel, screen in PMMA 192 SMD low power LEDs RGB: SMD full colour LED 24W - 24Vdc RGB: 34W - 24Vdc includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm RGB: includes 1,5 m FEP+PCP cable (equivalent to H05RN-F cable), 4x0,50/0,50 Ø6,3 mm total delivered lumens: 560 lm (2800K) diffuse optics LED colour: white - 2600K, 2800K, 3700K RGB ingress protection: IP67 impact resistance: IK10 equipped with IPS operating temperature: -10°C +45°C screen temperature: max 40°C (Ta 25°C) photobiological safety: risk group 2 in accordance with EN62471:2006 appliance class: III weight 0,70 kg/m dimensions 2010x20x43 mm dimming using a 24Vdc dimmer accessories: aluminium outer casing WC8114, outer casing for plasterboard WC8314, stainless steel outer casing WC8154, anti-fall kit WN8101
