Information

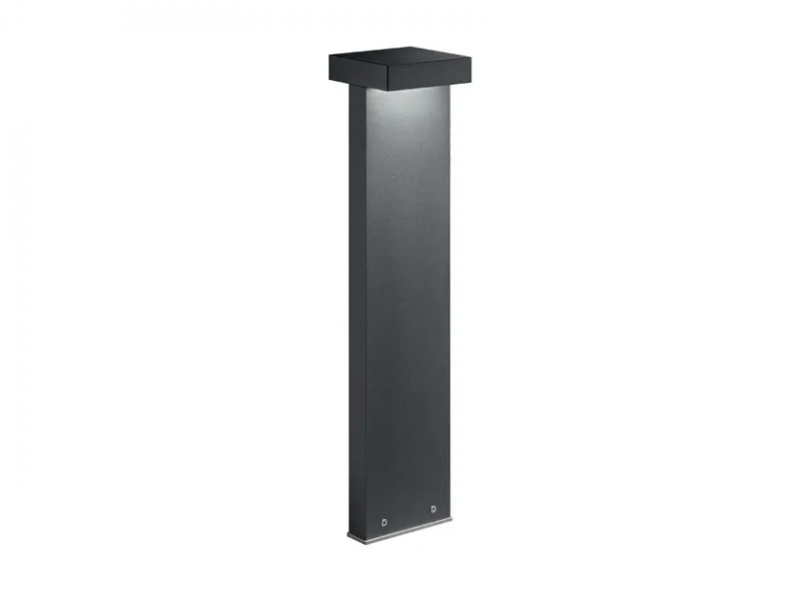

Bollard for outdoor applications
double beam
surface mounted (ground)
body in aluminium alloy EN AW 6026, screen in glass
finishes: anthracite, white, cor-ten, grey
36 (18 + 18) mid power LEDs
24W - 230Vac
built in power supply unit
includes 1,5 m neoprene cable, H05RN-F 3x1,0 Ø7 mm
Lumen output at source: 1242 lm (3000K) per beam, Delivered lumen output: 492 lm (3000K) per beam
diffuse, asymmetrical optics
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP65
impact resistance: IK08
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 2,20 kg
dimensions 124x103x560 mm
