Overall dimensions
Information

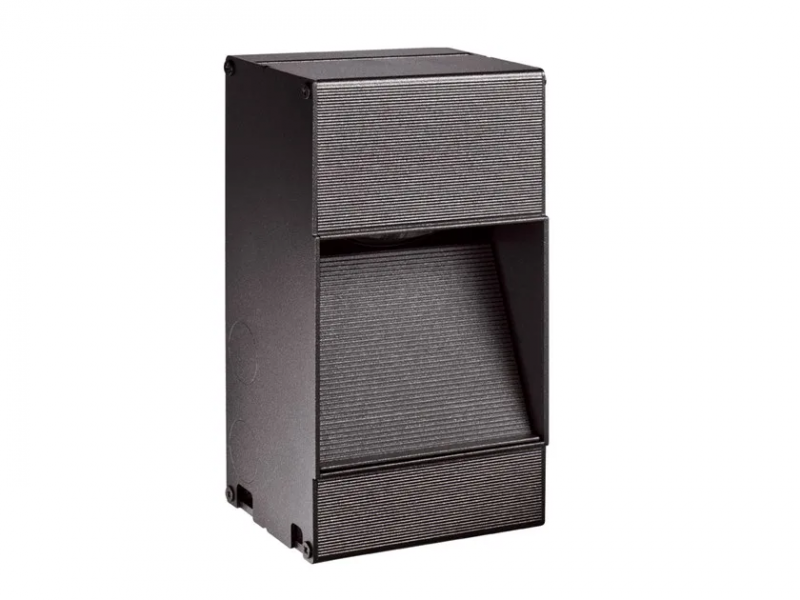

Step light for outdoor applications
recessed (wall)
Power: 6W (230Vac), 5W (24Vdc)
Power supply: 230Vac, 24Vdc
Lumen output at source: 383 lm (3000K, CRI 80), 355 lm (3000K, CRI 90)
Delivered lumen output: 214 lm (3000K, 150°x90°, CRI 80), 195 lm (3000K, 60°, CRI 80), 186 lm (3000K, 150°x90°, CRI 90), 170 lm (3000K, 60°, CRI 90)
1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 60°, asymmetrical 150°x90°
CRI: 80, 90
body in aluminium
Ingress protection: IP65
Impact resistance: IK05
Protection systems: IPS
Appliance class: II (230Vac), III (24Vdc)
Weight: 350 g (230Vac), 300 g (24Vdc)
Dimensions: 84x67x161 mm
