Information

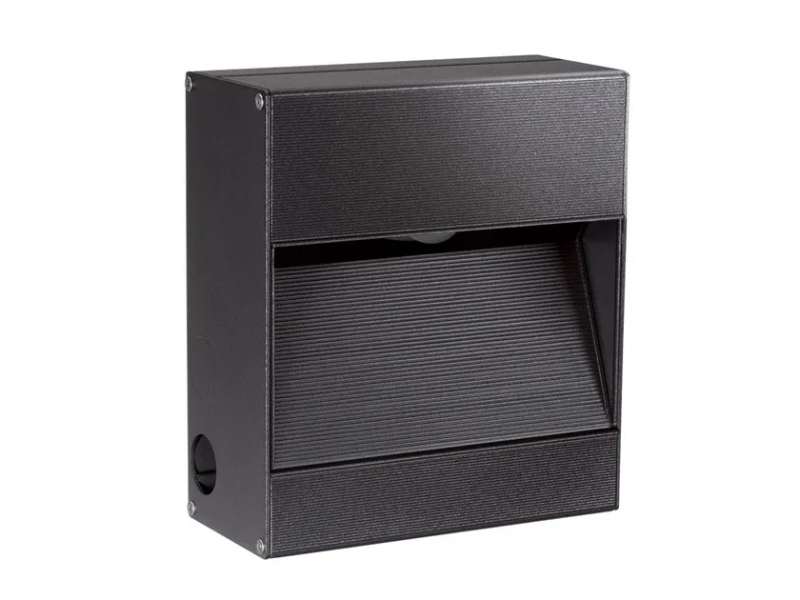

Step light for outdoor applications
recessed (wall)
10W, 8,5W
230Vac, 24Vdc
Lumen output at source: 851 lm (3000K, CRI 80)
788 lm (3000K, CRI 90)
Delivered lumen output: 390 lm (3000K, 150°x90°, CRI 80)
361 lm (3000K, 150°x90°, CRI 90)
320 lm (3000K, 60°, CRI 80)
296 lm (3000K, 60°, CRI 90)
1 power LED High Intensity
LED colour: 2700K, 3000K, 4000K
Optics: 60°, asymmetrical 150°x90°
CRI: 80, 90
body in aluminium
Finishes: anthracite, grey, white, cor-ten
230Vac: power supply unit included, 24Vdc: power supply unit not included
230Vac version: includes 0,20 m neoprene cable, H05RN-F 2x1,0 Ø7 mm
24Vdc version: includes 0,30 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection: IP65
Impact resistance: IK06
Protection systems: IPS
Operating temperature: -20°C — +45°C
Maximum device temperature: 50°C (Ta 25°C)
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: II, III
Weight: 520 g
Dimensions: 143x67x161 mm
Cutout dimensions: 143x161 mm
Accessories: WC1410E Outer casing - white, WC1410F Outer casing - grey, WC1410H Outer casing - anthracite, WC1410T Outer casing - cor-ten
Energy efficiency class: A / A+ / A++
