Overall dimensions
Information

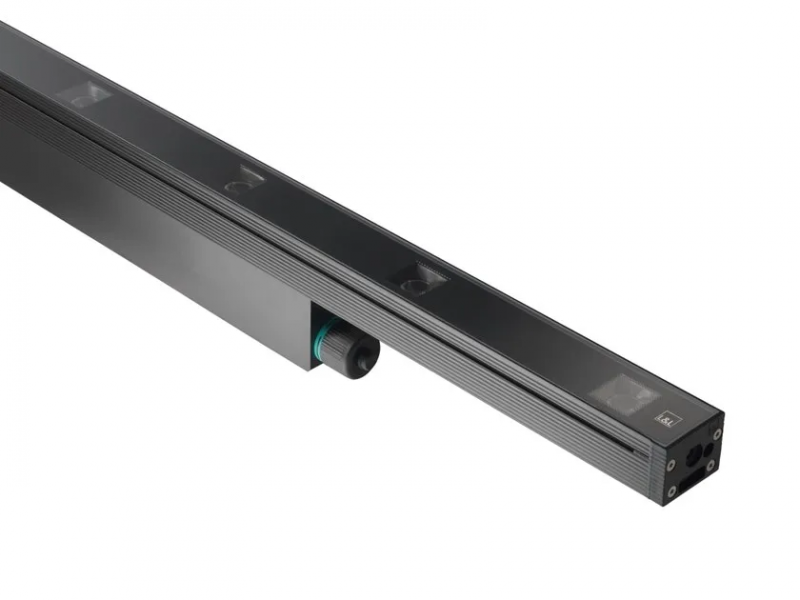

Neva 4.2 is a linear profile for outdoor applications
surface mounted (ceiling, wall, floor) with brackets or recessed (ceiling, floor, wall) with outer casing
Power consumption: 40W
230Vac
Lumen output at source: 3855 lm (3000K)
Delivered lumen output: 2415 lm (3000K, 30°)
15 power LEDs pitch 120 mm, 50 000h L85 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 11°, 30°, 45°, 10°x40°
CRI Colour Rendering Index: 80
body in black-anodized anticorodal aluminium
screen in serigraphed, transparent and tempered extra-clear glass
Ingress protection: IP65, IP67
Impact resistance: IK08
Easy to wire. The electrical cables can be attached directly to the connector, making the product easier to install
Protection systems: IPS, PID
Appliance class: class II.
