Information

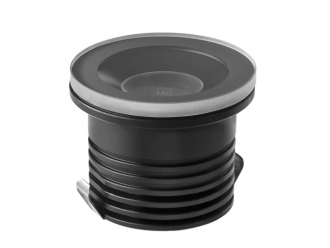

Recessed uplight for outdoor applications
recessed (ceiling, wall, floor)
Power: 3.5W (5° optics), 5W, 7W
RGB: max 7W
Power supply: 24Vdc
RGB: max 700mA
Lumen output at source: 488 lm (3000K, 5W, CRI 80), 452 lm (3000K, 5W, CRI 90), 657 lm (3000K, 7W, CRI 80), 608 lm (3000K, 7W, CRI 90), RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA)
Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90), RGB: 235 lm, R: 92 lm G: 105 lm B: 38 lm (700mA, 34°)
1 high-intensity power LED, RGB: 3 power LEDs, 3 MacAdam steps (white LED colour), 50000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K, RGB
Optics: 5°, 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, sharp 61°, 13°x52°, 21°x42°, diffuse
CRI: 80, 90
Material: body in anodized aluminium, screen in tempered, serigraphed-grey and transparent extra-clear glass
power supply unit not included
includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm
RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
Wiring: parallel
RGB: series
Ingress protection: IP67
Impact resistance: IK08
5° optics and 3.5W version: 4000K only CRI 80, version with screen in white, serigraphed glass available on request
Protection systems: IPS, PID
Operating temperature: -20°C — +45°C
Glow wire test: 960°
Photobiological safety: risk group 1 according to EN6 2471:2006
Appliance class: III
Weight: 350 g
Dimensions: Ø72x66 mm.
