Information

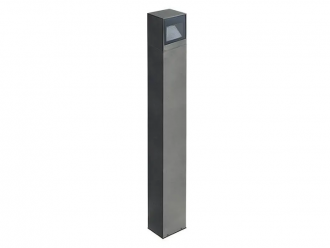

Bollard for outdoor applications, double beam
surface mounted (ground)
body in aluminium alloy EN AW 6060, screen in serigraphed, transparent and tempered extra-clear glass
finishes: anthracite, cor-ten, grey
2 power LEDs (7W), 2 power LEDs High Intensity (15W)
7W, 15W - 230Vac
built in power supply unit
connection box with 1 m cable, H05RN-F 2x0,75 Ø6,3 mm
delivered lumen output: 100 lm (3000K, 7W) per beam, 284 lm (3000K, 15W) per beam
asymmetrical optics
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP65
impact resistance: IK07
operating temperature: -20°C+45°C
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 1,60 kg h 120 mm, kg 2,0 h 250 mm, kg 2,7 h 600 mm, kg 3,1 h 800 mm
dimensions 100x100x120/250/600/800 mm
accessories: plate for in-ground installations WT000000, column - height 250 mm WT20250F / WT20250H / WT20250T, column - total height 600 mm WT20600F / WT20600H / WT20600T, column - total height 800 mm WT20800F / WT20800H / WT20800T
