Information

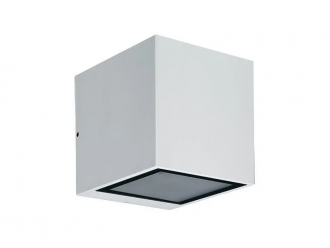

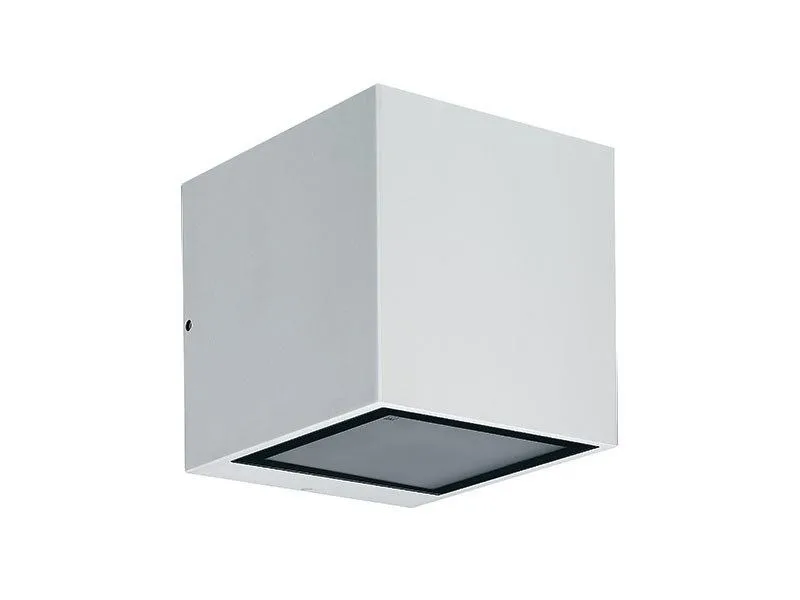

Wall mounted for outdoor applications
surface mounted (wall)
body in die-cast aluminium alloy EN AB 47100, screen in tempered glass
finishes: anthracite, white, cor-ten, grey
optics version: 5, 9 power LEDs, diffuse version: power LED matrix
optics version: 12W (5 power LEDs), 18W (9 power LEDs)
diffuse version: 12W - 230Vac
built in power supply unit
connection box with 0,50 m cable H05RN-F 2x0,75 Ø6,3 mm
delivered lumen output: optics version: 631 lm (3000K, 5 power LEDs), 1137 lm (3000K, 9 power LEDs), diffuse version: 441 lm (3000K)
optics: 7°, 10°, 30°, diffuse
LED colour: white - 2700K, 3000K, 4000K
ingress protection: IP65
impact resistance: IK05
operating temperature: -20°C+45°C
screen temperature: max 40°C (Ta 25°C)
Glow Wire Test: 960°
photobiological safety: risk group 1 in accordance with EN62471:2006
appliance class: I
weight 3,85 kg
dimensions 150x150x170 mm
accessories: spacer WD0400F / WD0400E / WD0400T / WD0400H
