Information

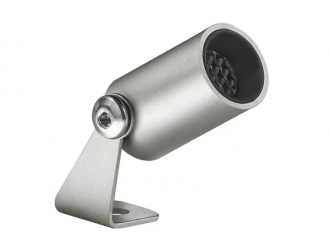

Gem Mini 1 is a projector for indoor applications
surface mounted (ceiling, wall, floor, shop windows)
Body material: body in anticorodal aluminium, bracket in aluminium
Finishes: pearl chrome, black, white
power supply unit not included
Accessories: WF0600 Grey cable HT105° 2x0,20 Ø3,0 mm, WF4000 Black cable HT105° 2x0,20 Ø3,0 mm, WFA024350 DC/DC 350mA/ 24Vdc converter cable.
Electrical characteristics
Power consumption: max 1W
Power supply: max 350mA
Lumen output at source: 105 lm (3000K, 350mA)
Delivered lumen output: 51 lm (3000K, 350mA, 36°)
1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 23°, 48°, 36°
CRI >90
Ingress protection: IP40
Appliance class: class III
Energy efficiency class: A / A+ / A++.
