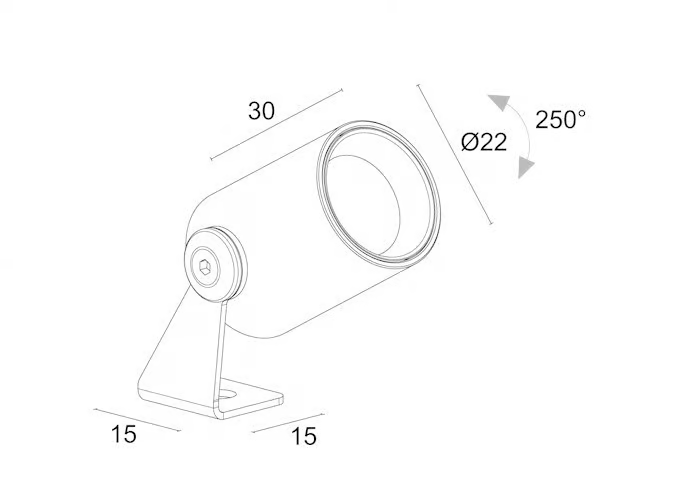

Overall dimensions
Information

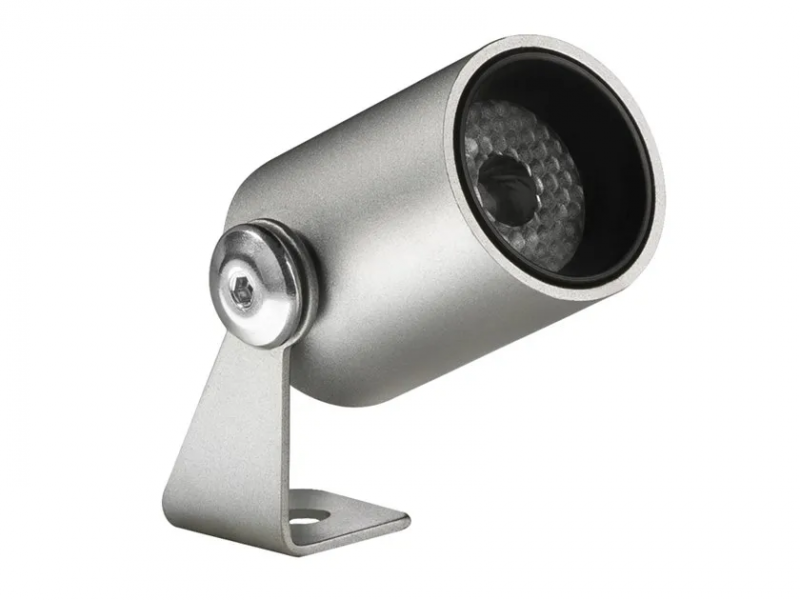

Gem 1.1 is a projector for indoor applications
surface mounted (ceiling, wall, floor, shop windows)
Body material: body in anticorodal aluminium, bracket in aluminium
Finishes: pearl chrome, black, white
power supply unit not included
Accessories: honeycomb louvre, WF0600 Grey cable HT105° 2x0,20 Ø3,0 mm, WF4000 Black cable HT105° 2x0,20 Ø3,0 mm, WFA024700 DC/DC 700mA/ 24Vdc converter cable.
Electrical characteristics
Power consumption: max 2,5W
Power supply: max 700mA
Lumen output at source: 260 lm (3000K, 700mA)
Delivered lumen output: 160 lm (3000K, 700mA, 23°)
1 power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour: 2700K, 3000K, 4000K
Optics: 17°, 32°, 42°, 23°
CRI >90
Body material: body in anticorodal aluminium, bracket in aluminium
Finishes: pearl chrome, black, white
power supply unit not included
Ingress protection: IP40
Appliance class: class III
Energy efficiency class: A / A+ / A++.
